Caution / Notice / Hint
NOTE:
This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Refer to PRECAUTION [12/2021 - ]

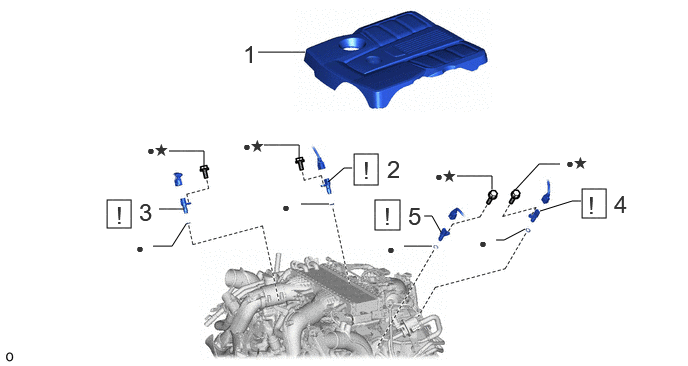

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | V-BANK COVER SUB-ASSEMBLY | 11209 | - | - | - |
| 2 | CAMSHAFT POSITION SENSOR (for Intake Side of Bank 1) | 11101E | See step 2 | - | - |
| 3 | CAMSHAFT POSITION SENSOR (for Exhaust Side of Bank 1) | 11101E | See step 3 | - | - |
| 4 | CAMSHAFT POSITION SENSOR (for Intake Side of Bank 2) | 11101E | See step 4 | - | - |
| 5 | CAMSHAFT POSITION SENSOR (for Exhaust Side of Bank 2) | 11101E | See step 5 | - | - |
| • | Non-reusable part | * | Precoated part |
