Caution / Notice / Hint

COMPONENTS (REMOVAL)

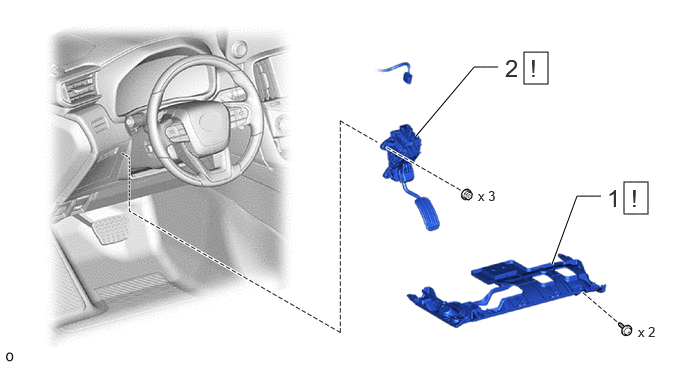

Fig 1: Accelerator Pedal Removal Components
GTY1079671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY 55606 See step  1 - -
2 ACCELERATOR PEDAL (WITH SENSOR) ROD ASSEMBLY 78110K See step  2 - -
