Parts Location [12/2021 - ]: Illustration

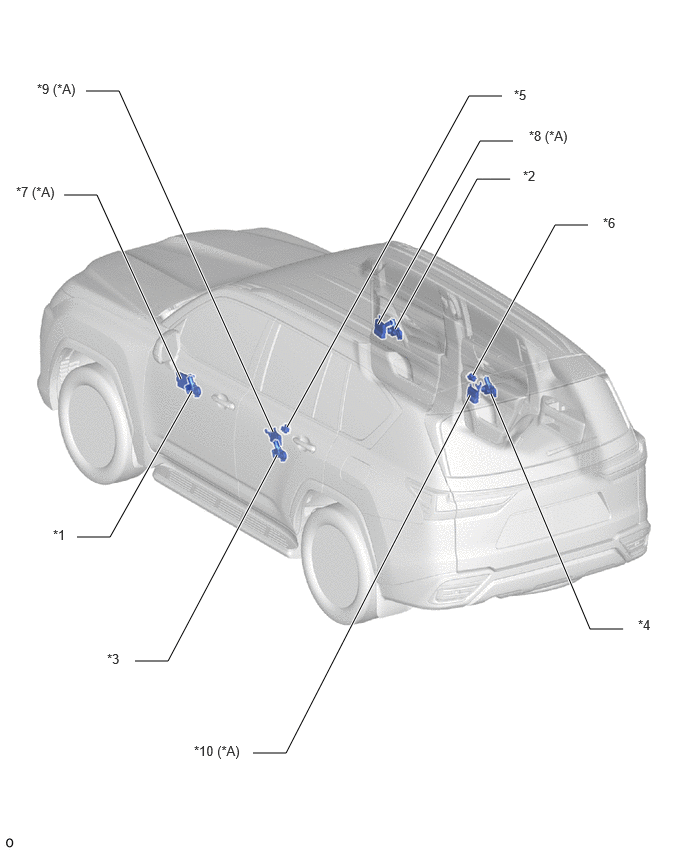

| *A | w/ Door Closer System | - | - |
| *1 | FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH | *2 | FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH |
| *3 | REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH | *4 | REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH |
| *5 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY LH | *6 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RH |
| *7 | FRONT MULTIPLEX NETWORK DOOR ECU LH | *8 | FRONT MULTIPLEX NETWORK DOOR ECU RH |
| *9 | REAR MULTIPLEX NETWORK DOOR ECU LH | *10 | REAR MULTIPLEX NETWORK DOOR ECU RH |

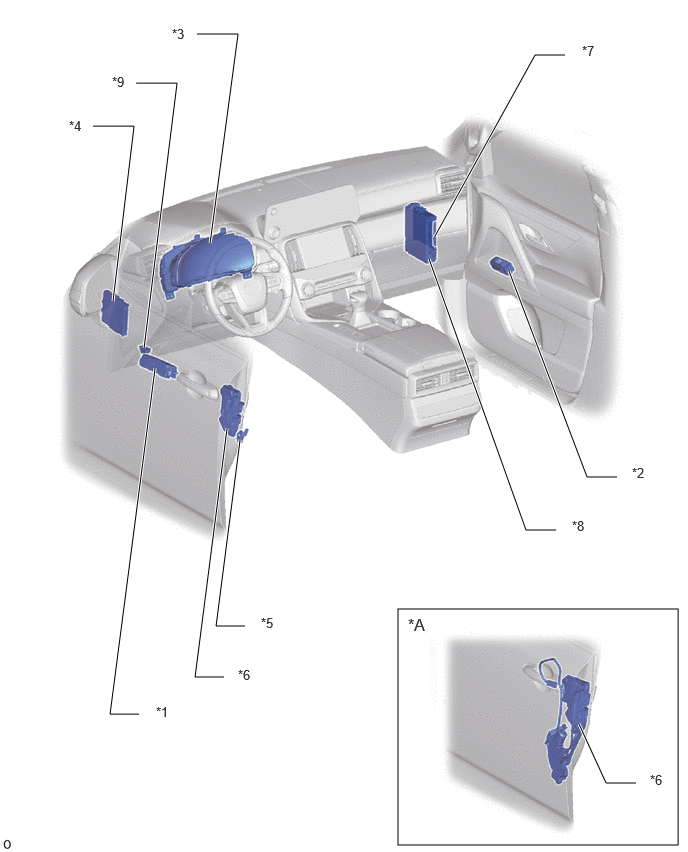

| *A | w/ Door Closer System | - | - |
| *1 | POWER WINDOW MASTER SWITCH ASSEMBLY WITH BEZEL | *2 | POWER WINDOW WITH BEZEL SWITCH ASSEMBLY |
| *3 | COMBINATION METER ASSEMBLY | *4 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *5 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *6 | FRONT DOOR WITH MOTOR LOCK ASSEMBLY LH |
| *7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *8 | POWER DISTRIBUTION BOX ASSEMBLY - ECU-IGR NO. 1 FUSE (w/ Door Closer System) - ECU-IGR NO. 2 FUSE (w/ Door Closer System) - ECU-B NO. 3 FUSE - DOOR F/L FUSE - DOOR F/R FUSE - DOOR R/L FUSE - DOOR R/R FUSE |
| *9 | DLC3 | - | - |
