Components [11/2021 - ]

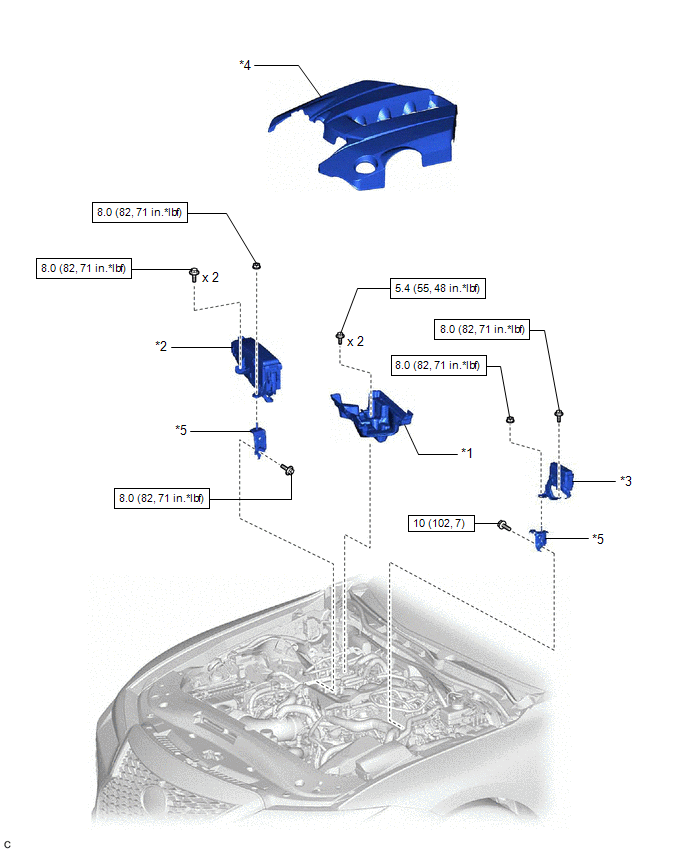

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	BATTERY TRAY	*2	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
*3	NO. 3 ENGINE ROOM RELAY BLOCK ASSEMBLY	*4	V-BANK COVER SUB-ASSEMBLY
*5	WIRE HARNESS CLAMP BRACKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

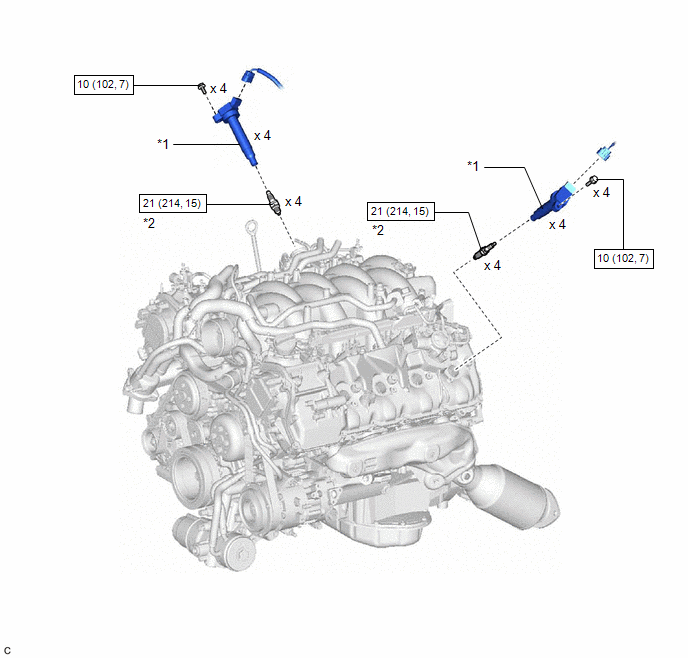

Fig 2: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (2 Of 2)

*1	IGNITION COIL ASSEMBLY	*2	SPARK PLUG
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
