Components [11/2021 - ]

Fig 1: Camshaft Timing Control Motor Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE UNDER COVER

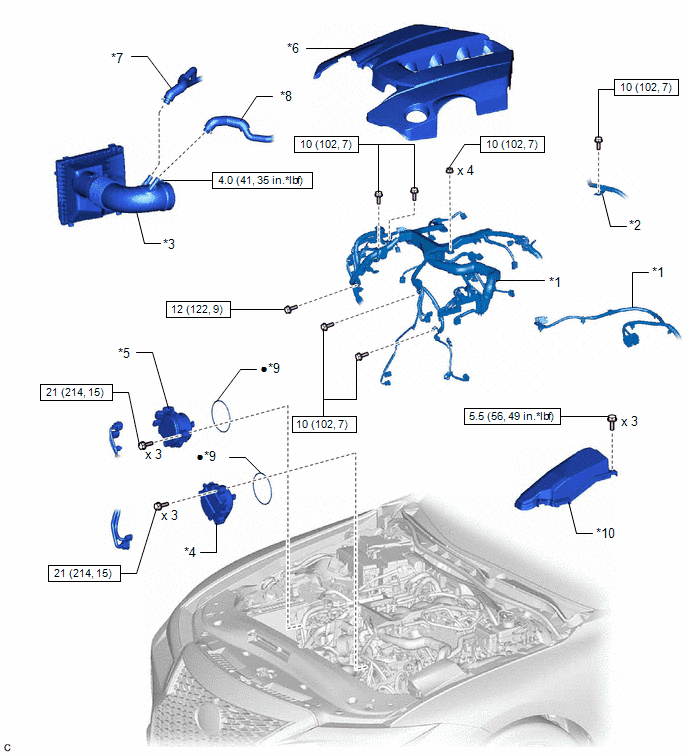

Fig 2: Camshaft Timing Control Motor Replacement Components With Torque Specifications (2 Of 2)

*1	ENGINE WIRE	*2	WIRE HARNESS BRACKET
*3	AIR CLEANER CAP WITH AIR CLEANER HOSE	*4	CAMSHAFT TIMING CONTROL MOTOR WITH EDU ASSEMBLY LH
*5	CAMSHAFT TIMING CONTROL MOTOR WITH EDU ASSEMBLY RH	*6	V-BANK COVER SUB-ASSEMBLY
*7	NO. 2 VENTILATION HOSE	*8	NO. 3 VENTILATION HOSE
*9	O-RING	*10	ENGINE ROOM ECU COVER
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
