Installation [10/2018 - ]: Procedure

1. Engage the 2 guides to install the No. 1 ECM bracket to the ECM.
2. Install the 2 screws.

   Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)

1. Engage the 2 guides to install the No. 2 ECM bracket to the ECM.
2. Install the 2 screws.

   Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)

1. Install the ECM with the bolt and nut.

   Bolt

   Torque: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)

   Nut

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

   NOTE:

   If the ECM has been struck or dropped, replace it.

2. Connect the 2 ECM connectors and lower the 2 lock levers.
   NOTE:

   • When connecting the ECM connectors, make sure that dirt, water or other foreign matter does not contact the connecting parts of the ECM connectors.
   • Be sure to securely connect the ECM connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

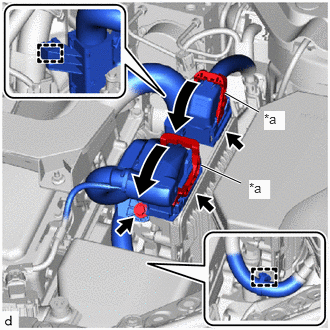

   *a	Lock lever

3. Install the engine wire to the ECM bracket with the 2 clamps and bolt.

   Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

Refer to INSTALLATION [10/2018 - ]

Refer to INITIALIZATION [10/2018 - 08/2021] Refer to INITIALIZATION [08/2021 - ]
