Smart Key Immobilizer Reset And Add/Remove Key (L-SB-0013-24 REV1)

Publication date: 2025-02-10
Reference number: L-SB-0013-24 REV1
Supersedes refnos: L-SB-0013-24

SMART KEY IMMOBILIZER RESET AND ADD/REMOVE KEY

SMART KEY IMMOBILIZER RESET AND ADD/REMOVE KEY

TECHNICAL SERVICE BULLETIN

Reference Number(s): L-SB-0013-24 Rev1, Date of Issue:  February 10, 2025
LEXUS: 2021 - 2025 ES250; 2019 - 2025 ES300H, ES350, UX250H; 2022 - 2023 GX460; 2024 - 2025 GX550, RZ300E, TX350, TX500H, TX550H+; 2025 LC500, LC500C, LC500H, LX700H, UX300H; 2018 - 2025 LS500, LS500H; 2022 - 2025 LX600, NX250, NX350, NX350H, NX450H+, RX350; 2023 - 2025 RC F, RC300, RC350, RX350H, RX450H+, RX500H, RZ450E; 2022 RX450H; 2019 - 2022 UX200
SERVICE CATEGORY: Vehicle Interior
SECTION: Theft Deterrent/Keyless Entry
MARKET: USA
COPYRIGHT: © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002
Superceded Bulletin(s): L-SB-0013-24, Date of Issue:  March 22, 2024

APPLICABILITY

APPLICABILITY

YEAR(S) MODEL(S) ADDITIONAL INFORMATION
2021 - 2025 ES250
2019 - 2025 ES300H, ES350, UX250H
2022 - 2023 GX460
2024 - 2025 GX550, RZ300E, TX350, TX500H, TX550H+
2025 LC500, LC500C, LC500H, LX700H, UX300H
2018 - 2025 LS500, LS500H
2022 - 2025 LX600, NX250, NX350, NX350H, NX450H+, RX350
2023 - 2025 RC F, RC300, RC350, RX350H, RX450H+, RX500H, RZ450E
2022 RX450H
2019 - 2022 UX200

REVISION NOTICE

February 10, 2025 Rev1:

Any previous printed versions of this bulletin should be discarded.

SUPERSESSION NOTICE

The information contained in this bulletin supersedes Service Bulletin No. L-SB-0014-18.

Service Bulletin No. L-SB-0014-18 is obsolete, and any printed versions should be discarded.

INTRODUCTION

The Immobilizer and Smart Key Reset is a feature that allows the registration of new keys when all master keys are lost. Once the system is reset, all previously registered keys will be erased and can never be reused  . Another feature, Add/Remove Key, is also available. Once a key is removed, it can never be reused.

Follow the procedures in this bulletin to reset a vehicle Immobilizer or Smart Key system and to add and/or remove a key.

NOTE: When performing a smart code reset, ALL registered keys are erased and CANNOT be used again on ANY vehicle. For the undesignated key permanent erasure utility, ONLY the keys that are NOT present will be removed. ANY keys that are NOT present can never be reused.

WARRANTY INFORMATION

WARRANTY INFORMATION

OP CODE DESCRIPTION TIME OFP T1 T2
N/A Not Applicable to Warranty - - - -

REQUIRED TOOLS & EQUIPMENT

PARTS INFORMATION

SPECIAL SERVICE TOOLS (SST) PART NUMBER QTY
Battery Diagnostic Tool(1) DCA-8000P T  1
(1) Essential SST.
NOTE: Additional SSTs may be ordered by calling 1-800-368-6787 or by visiting Home - Service Resources - Lexus Special Service Tools (SSTs )  .
PARTS INFORMATION

REQUIRED EQUIPMENT SUPPLIER PART NUMBER QTY
Techstream ADVi(1) ADE TSADVUNIT 1
Techstream 2.0 TS2UNIT
Techstream Lite TSLITEPDLR01
Techstream Lite (Green Cable) TSLP2DLR01
(1) Essential SST.
NOTE:
  • Only ONE of the Techstream units listed above is required.
  • GTS+ Software version 2024.04.004.02 or later is required.
  • Additional Techstream units may be ordered by calling Approved Dealer Equipment (ADE) at 1-800-368-6787 or by visiting TIS - Diagnostics - Tools & Equipment - Techstream Order Portal.

SYMPTOM CHART

SYMPTOM ACTION PROCEDURE PG.
Lost ALL Keys Delete ALL Keys Immobilizer Reset  7
Add NEW Keys to Vehicle Add More Than One New Key if Performed Post Immobilizer Reset Smart Code Registration  24
Key(s) is (are) Lost or Stolen and/or Request to Remove ANY Key NOT Present From the Vehicle Delete One or More Keys, NOT ALL Keys Undesignated Key Permanent Erasure  31
NOTE: If ALL keys are lost, refer to the applicable Repair Manual and follow the process for establishing communication. It may also be necessary to maintain communication during the entire procedure by actions such as pushing the doorjamb courtesy switch or flashing the high beams. Do NOT cycle the engine switch to keep the ECU awake.

PROCEDURES

SECURITY AUTHORIZATION FOR THE RESET PASS-CODE

Improved security measures have been implemented in TIS and additional parameters are obtained from the vehicle during Immobilizer Reset. A secondary approval by dealer management is required each time an Immobilizer or Smart Key Reset is performed.

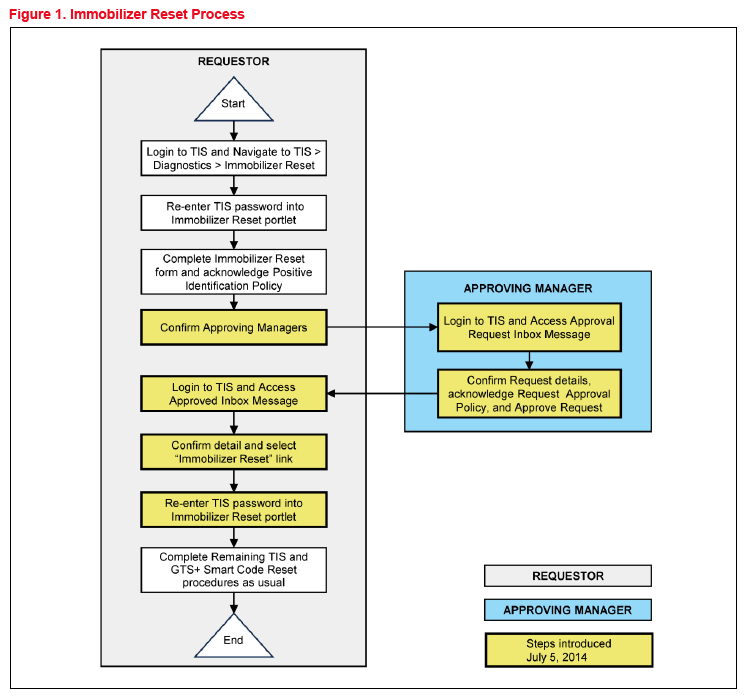

Please review the following flowchart and become familiar with the options outlined BEFORE attempting a reset.

G16936892

KEY POINTS

  • The reset request can be submitted from GTS+ in the vehicle or on TIS BEFORE the vehicle is available.
  • A single management approval can be used multiple times for the same VIN until the vehicle repair is complete.
  • Each reset attempt for the same VIN will generate a NEW seed number and a unique passcode.
  • The request and approval hand-off between the technician and management is completed on the TIS home page inbox, accessed at each individual's location (GTS+, office, etc.).

MAIN STEPS

  1. Obtain Authorization
    1. Technician Reset Approval Request
    2. Manager Access TIS Inbox Message and Approval
  2. Perform Reset Via GTS+
    1. Access Approval TIS Inbox Message
    2. Perform Reset at Vehicle

VARIATIONS

  1. Pre-approval BEFORE Vehicle is Accessed (per Main Steps)
  2. Request and Receive Approval From GTS+ AFTER Entering the Reset Utility
  3. Repeated Reset Attempts With GTS+ by Accessing the Single Approval File

APPROVING MANAGERS

Once the Pass-Code Request form is completed, an approval request will be sent to ALL approving managers. Dealership personnel with the following job titles in Staffmaster are granted passcode approval capability: Dealer Principal, General Manager, Service Manager, Service Director, Service/Parts Director, Parts Manager, Parts Director, Customer Relations Manager, Customer Satisfaction Manager, Shop Foreman, Diagnostic Specialist, Team Leader.

Each dealer MUST have AT LEAST two enrolled managers to access ANY passcodes.

Please review the GTS+ and TIS screenshots in this bulletin to become familiar with the management authorization process flow.

RESET APPROVAL REQUEST (TIS PRE-APPROVAL)

  1. Navigate to TIS - Diagnostics - Immobilizer Reset  .
  2. Enter your password in the white box.
  3. Press Login.
    G16936893

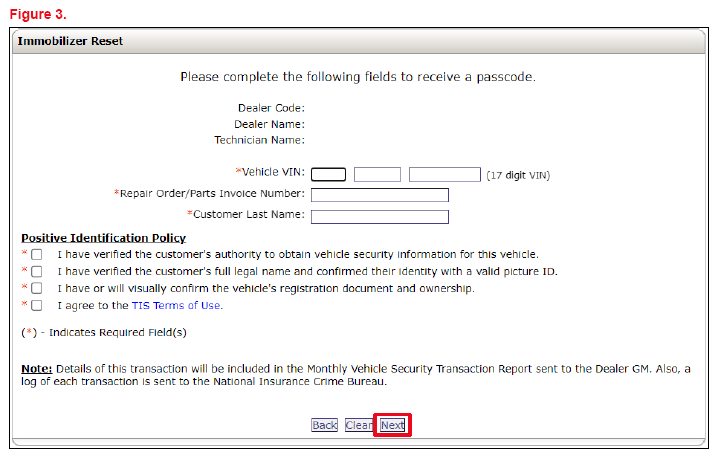

  4. Populate the boxes with the correct information.
  5. Read the Positive Identification Policy and check the boxes once the indicated tasks are completed.
  6. Select Next to continue.
    G16936894
  7. AFTER two or more managers are selected, select Submit.
    NOTE:
    • It is required to select AT LEAST two managers.
    • Each request MUST receive approval by one manager.
    G16936895

OPENING SMART ACCESS IN GTS+

Please review the GTS+ and TIS screenshots in this bulletin.

NOTE: If ALL keys are lost, refer to the applicable Repair Manual and follow the process for establishing communication. It may also be necessary to maintain communication during the entire procedure by actions such as pushing the doorjamb courtesy switch or flashing the high beams. Do NOT cycle the engine switch to keep the ECU awake.

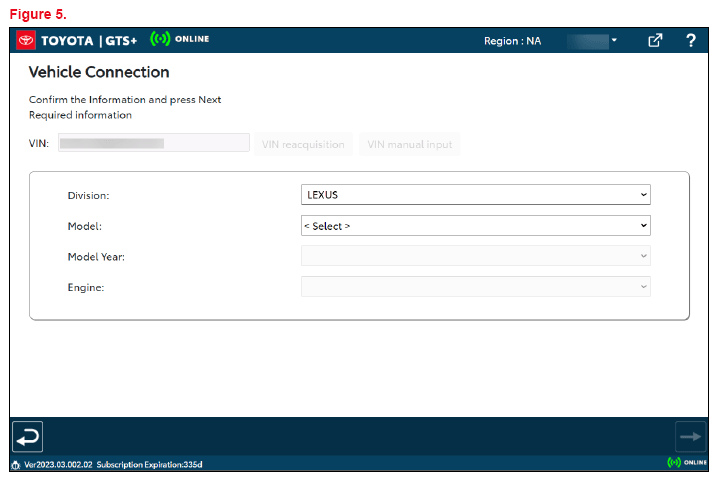

  1. Connect GTS+ to the vehicle.

    If the ignition CANNOT be turned on or the information does NOT automatically populate, choose the appropriate vehicle model and model year and enter the VIN in ALL capital letters.

    NOTE:
    • If the battery is low of charge, attaching a battery charger may be necessary to maintain battery voltage during Immobilizer Reset.
    • The battery diagnostic tool MUST be used in Power Supply Mode to maintain battery voltage at 13.5V while flash reprogramming the vehicle.
    • For details on how to use the battery diagnostic tool, refer to the DCA-8000 Instruction Manual  located at TIS - Diagnostics - Tools & Equipment - Battery Diagnostics.
    G16936896

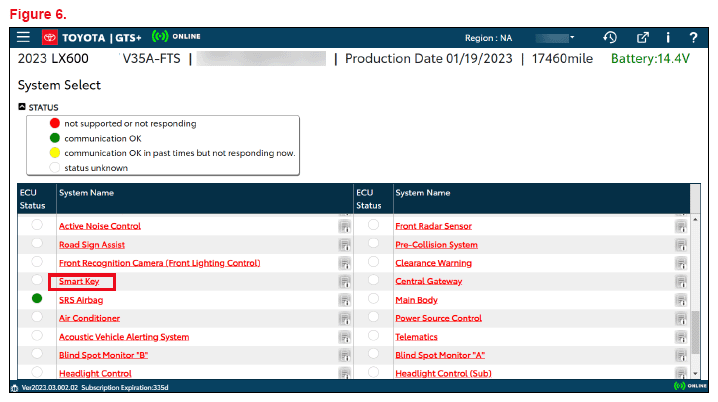

  2. Select Smart Key.
    G16936897

PRE-APPROVED IMMOBILIZER RESET

Please review the GTS+ and TIS screenshots in this bulletin.

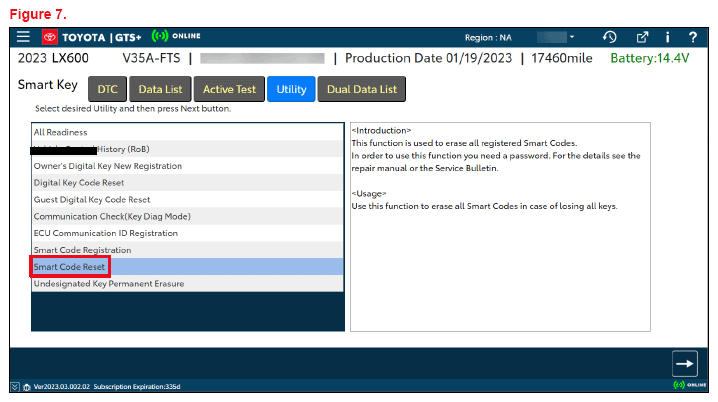

  1. Select Smart Code Reset.
    G16936898

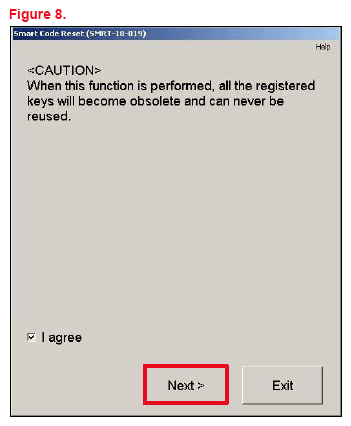

  2. Read the caution, check I agree, then select Next.
    G16936899

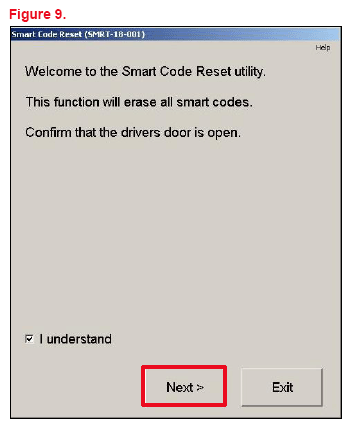

  3. Open the driver's door, check I understand, then select Next.
    G16936900

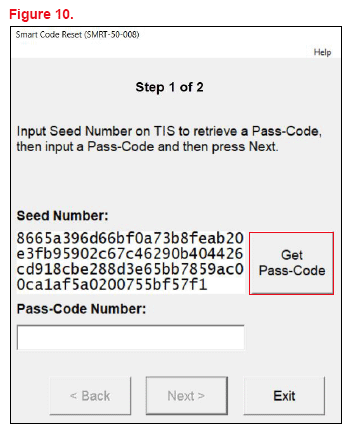

  4. Select Get Pass-Code.
    G16936901

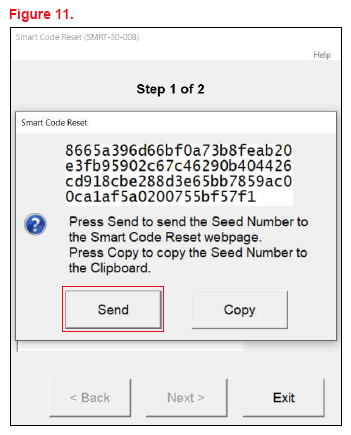

  5. Select Copy to copy the seed number to the computer's clipboard.
  6. Select Send to open a link to TIS.

    Does the manager approval file for this VIN exist in your TIS inbox?

    • YES  - Go to section

      Approved Immobilizer Reset  .

    • NO  - Open the approval file in your TIS inbox and enter the most recent seed number to get the passcode and continue to step 7.
    G16936902

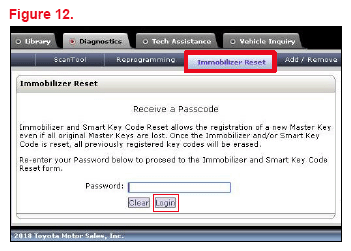

  7. Make sure the Immobilizer Reset tab is selected.
  8. Enter the password and click Login.
    G16936903

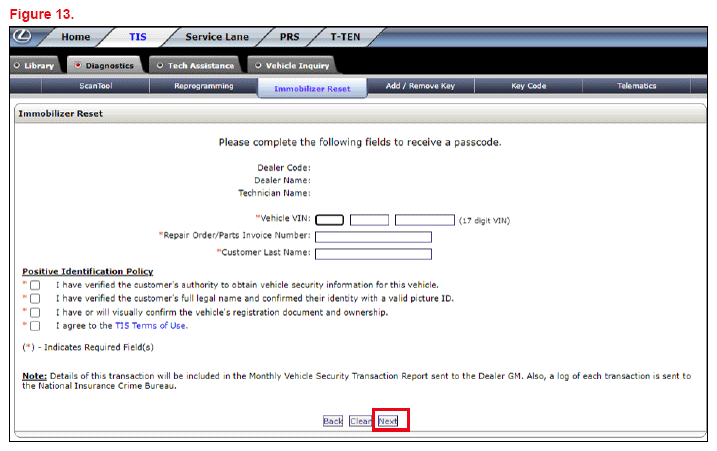

  9. Fill in the required information, then select Next.
    G16936904

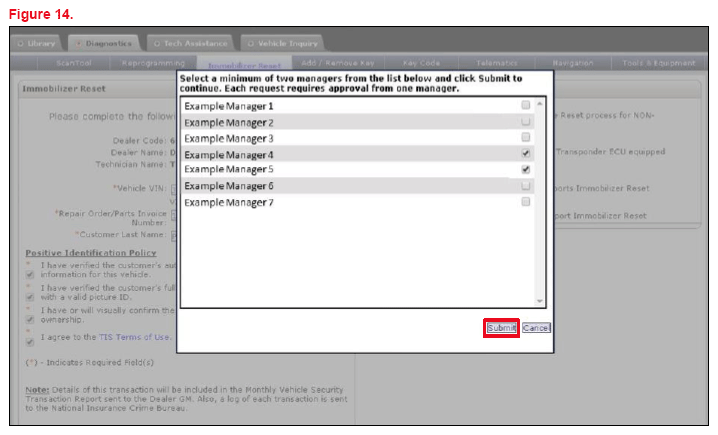

  10. AFTER two or more managers are selected, select Submit.
    NOTE:
    • It is required to select AT LEAST two managers.
    • Each request MUST receive approval by one manager.
    G16936905
  11. After manager approval is received, go to the Approved Immobilizer Reset section on page 17.

MANAGER APPROVAL

Please reference the TIS screenshots in this bulletin.

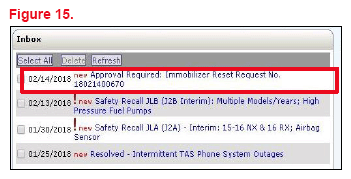

  1. AFTER the request is submitted, one of the authorized dealer managers will locate the technician's request in their TIS home page inbox.
  2. Select the title to open the request.
    G16936906

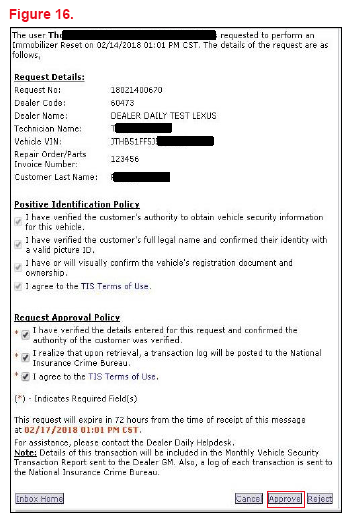

  3. Read the Request Approval Policy, then check the boxes AFTER the indicated tasks are completed.
    G16936907
  4. Select Approve to send the approval to the technician.

APPROVED IMMOBILIZER RESET

Please reference the TIS screenshots in this bulletin.

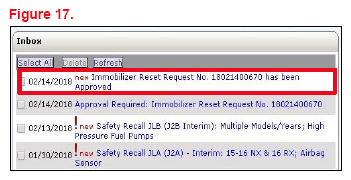

  1. AFTER approval is received by management, open the TIS inbox and locate the Immobilizer Reset Request.
    G16936908
  2. Select the title to open the approval.
    NOTE:
    • It is recommended to retrieve the passcode from the GTS+ connected to the vehicle as the seed number and passcode work together.
    • AFTER approval is received by management, multiple resets can be performed for a single VIN. Each attempt will create a NEW seed number and resultant passcode.

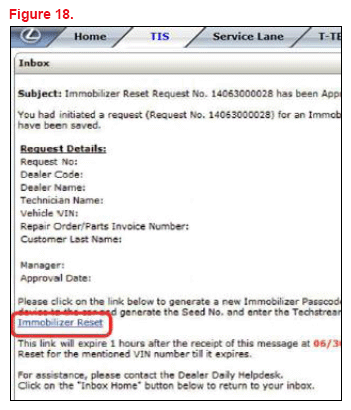

  3. Select the Immobilizer Reset link.
    G16936909

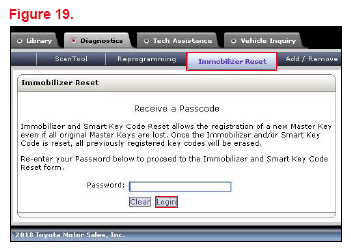

  4. Make sure the Immobilizer Reset tab is selected.
  5. Enter the password and select Login.
    G16936910

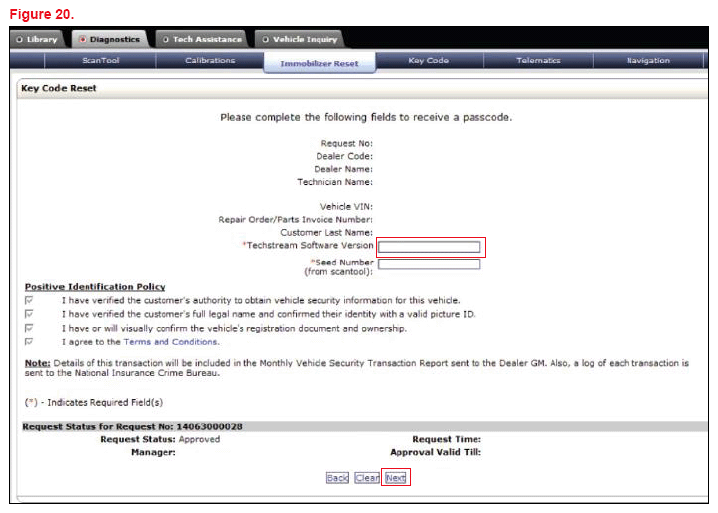

  6. Enter the GTS+ software version and paste the seed number from GTS+.
  7. Select Next.
    G16936911

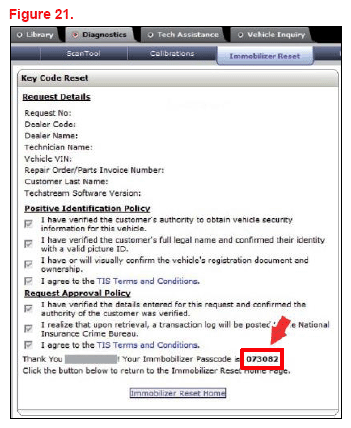

  8. Retrieve the passcode in the location shown.
    NOTE:
    • Do NOT resubmit another approval for this vehicle if the file from management has been received in TIS and it shows the approval status for the given VIN.
    • Open the approval file and enter a NEW seed number to get the unique passcode for each attempt.
    G16936912

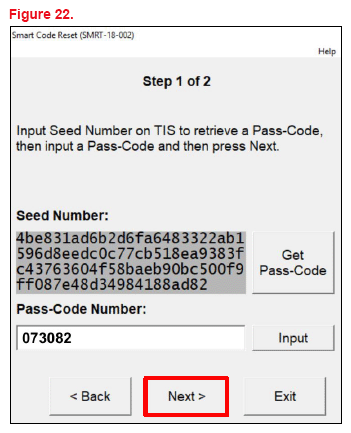

  9. AFTER retrieving the passcode, copy and paste it (with NO additional blank spaces) into the Pass-Code Number box and select Next.
    NOTE: AFTER selecting Next, another passcode will be requested.
    G16936913

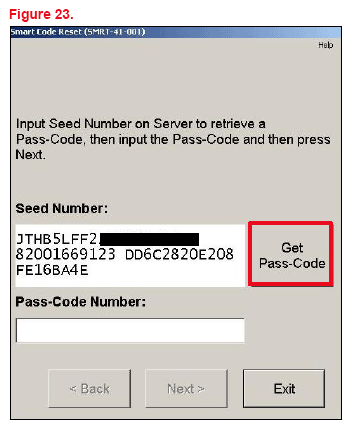

  10. Select Get Pass-Code.
    G16936914

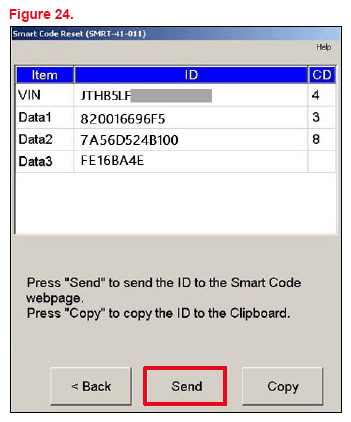

  11. Select Send to open a link to TIS.
    G16936915

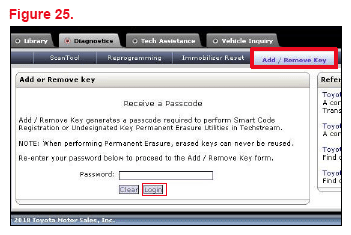

  12. Enter the password in the Add/Remove Key tab and select Login.
    NOTE: Make sure the Add/Remove Key tab is selected.
    G16936916

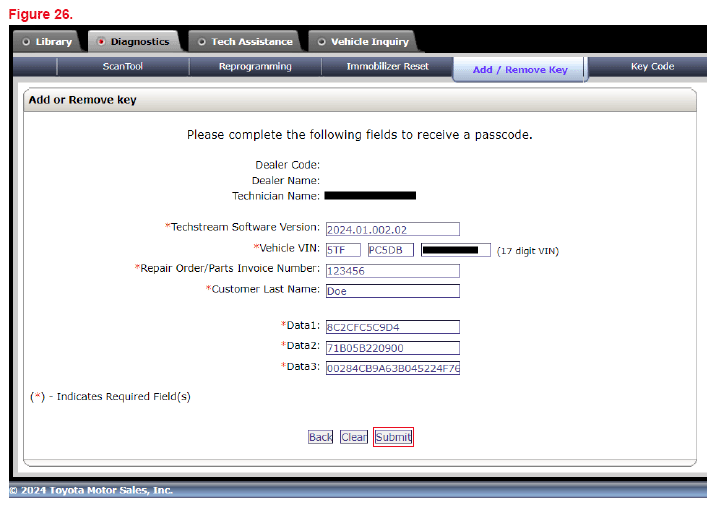

  13. AFTER the boxes are filled in with the information from the previous GTS+ screen, select Submit.
    G16936917

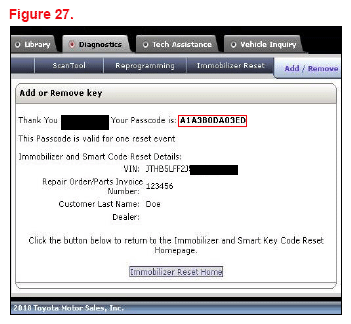

  14. The bolded passcode can be copied and pasted back into GTS+.
    G16936918

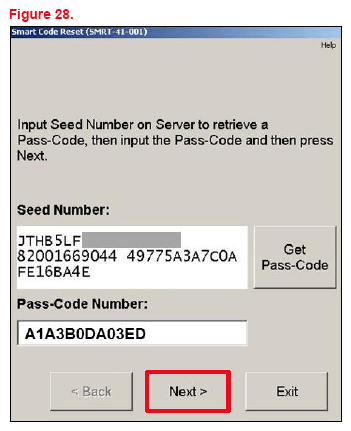

  15. Copy and paste the passcode (with no additional spaces) into the Pass-Code Number box and select Next.
    G16936919

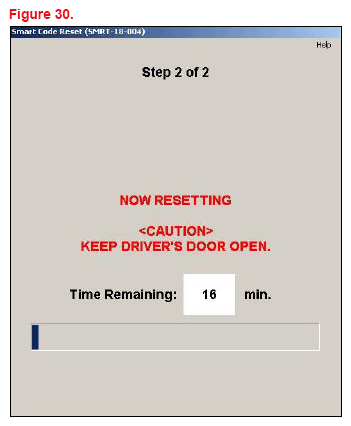

  16. AFTER a confirmation message pops up, select Yes.
    G16936920
    G16936921

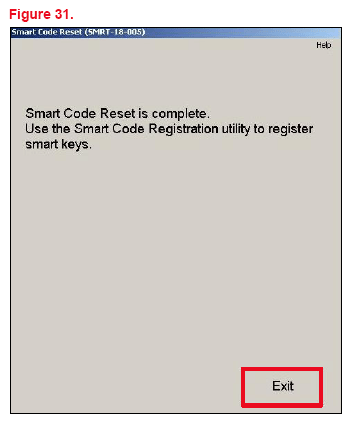

  17. Smart Code Registration may now be used to register Smart Keys.
  18. Select Exit.
    G16936922

SMART CODE REGISTRATION

Please review the GTS+ and TIS screenshots in this bulletin.

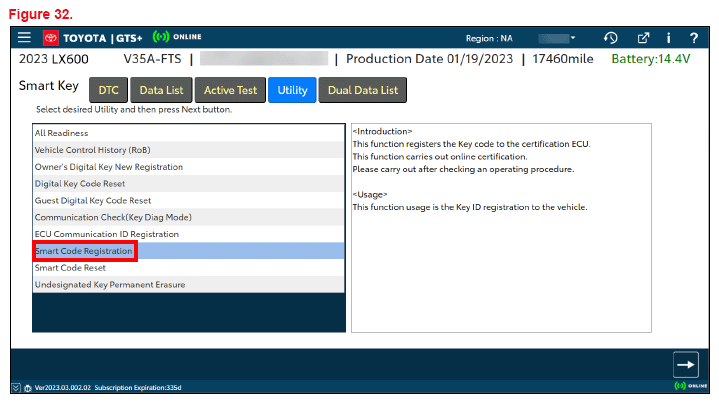

  1. Select Smart Code Registration.
    G16936923

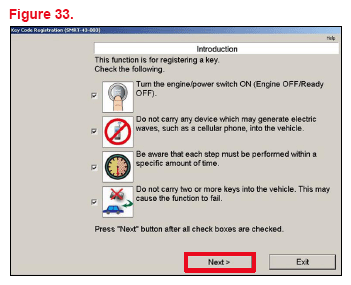

  2. Read the instructions, check each item, and select Next.
    G16936924

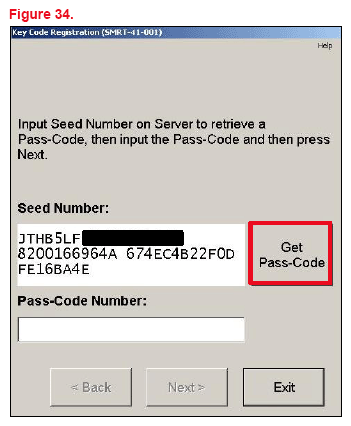

  3. Select Get Pass-Code.
    G16936925

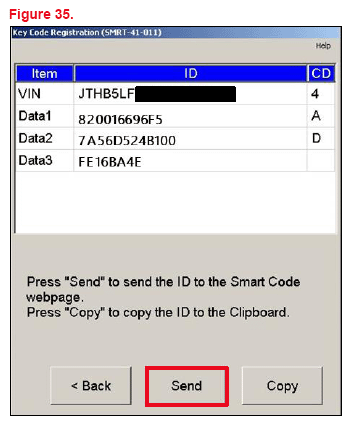

  4. Select Send to open a link to TIS.
    G16936926
  5. Make sure the Add/Remove Key tab is selected.
  6. Enter the password and select Login.
    G16936927
  7. Make sure each text box is populated with the correct information from the previous GTS+ screen.
  8. Select Submit.
    G16936928

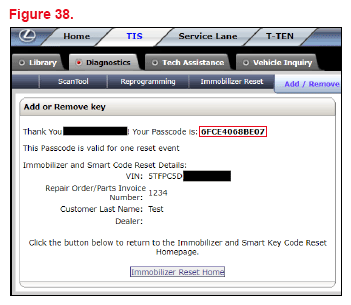

  9. The bolded passcode may be copied and pasted back into GTS+.
    G16936929

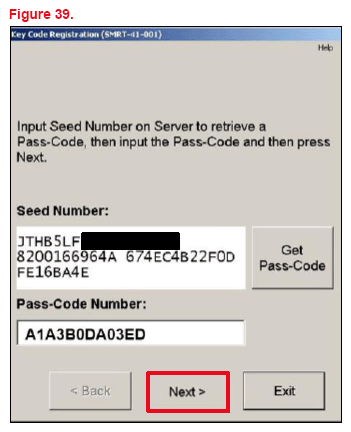

  10. Copy and paste the number (with no additional spaces) into the Pass-Code Number box and select Next.
    G16936930

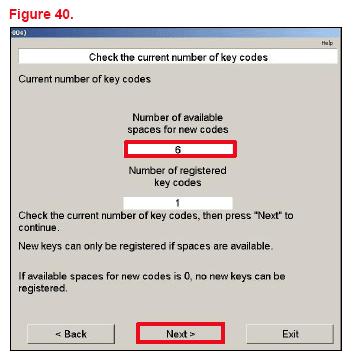

  11. Make sure there is enough room for additional key codes. The white box outlined in red shows the number of available spaces to add this session's NEW key(s).
  12. AFTER confirmation of step  11, select Next.
    G16936931

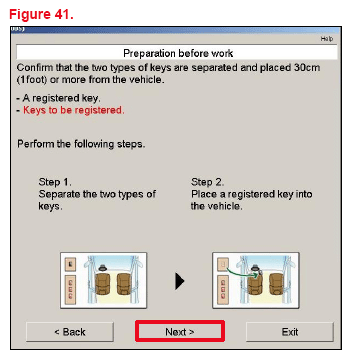

  13. Place the currently registered key and the NEW unregistered key(s) outside the vehicle.
  14. BEFORE the procedure begins, bring the registered key into the vehicle.
  15. Select Next.
    G16936932

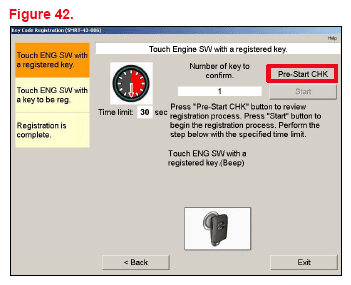

  16. Touch the ignition switch with the registered key.
  17. Select Pre-Start CHK to review the registration process.
    NOTE: Pre-Start CHK MUST be selected BEFORE continuing to the next step.
    G16936933

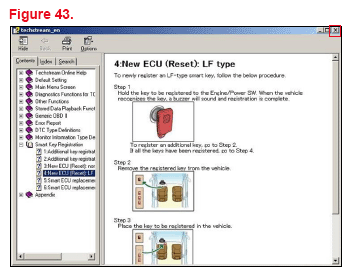

  18. AFTER the Pre-Start CHK is reviewed, close it by clicking the X in the top right corner.
  19. Select Start.
    G16936934

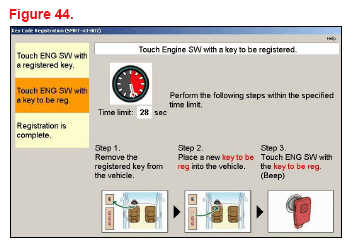

  20. Touch the ignition switch with the NEW key. The vehicle will beep twice AFTER each key is registered.
    NOTE: If adding keys AFTER performing an immobilizer reset, multiple keys can be added at a time. The vehicle will beep once each time a NEW key is registered. Repeat this step until ALL NEW keys are registered.
    G16936935

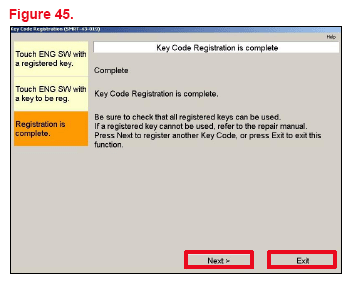

  21. Function-check the keys by pressing the buttons (lock/unlock/panic/trunk) and make sure the vehicle will start with the key.
  22. Select Next to restart the process to add another key.
  23. Select Exit to close the utility.
    G16936936

UNDESIGNATED KEY PERMANENT ERASURE

Please review the GTS+ and TIS screenshots in this bulletin.

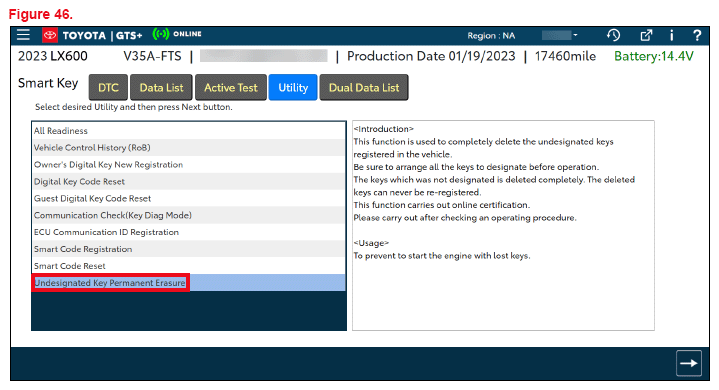

  1. Select Undesignated Key Permanent Erasure.
    NOTE: Make sure ALL keys to be reused are present.
    G16936937

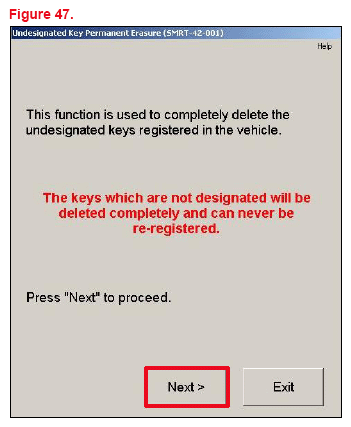

  2. Read the warning message BEFORE continuing. The keys that are NOT present in this procedure will be permanently erased from the vehicle. Erased keys will NOT be functional on this, or ANY vehicle.
  3. Select Next.
    G16936938

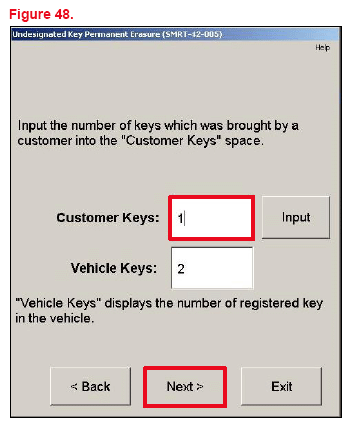

  4. Input the number of customer keys that are present and select Next.
    G16936939

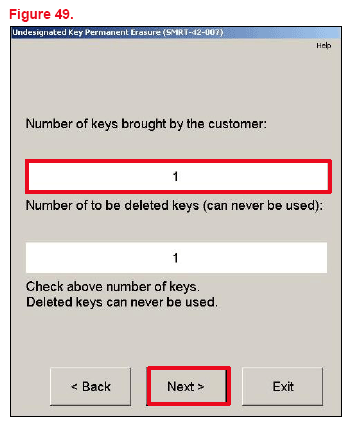

  5. The customer keys listed will NOT be erased during the procedure. Confirm the numbers of keys to be kept, then select Next.
    G16936940

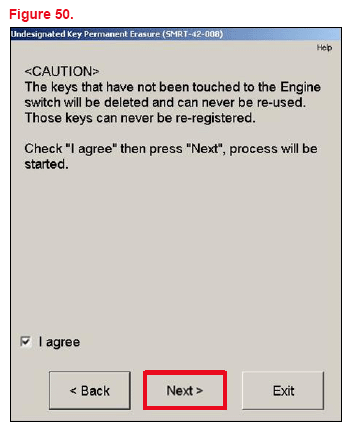

  6. Confirm that ONLY the keys touched to the ignition are to be kept. ALL other keys NOT touched to the ignition will be deleted and CANNOT be reused on ANY vehicle.
  7. Check I agree, then select Next.
    G16936941

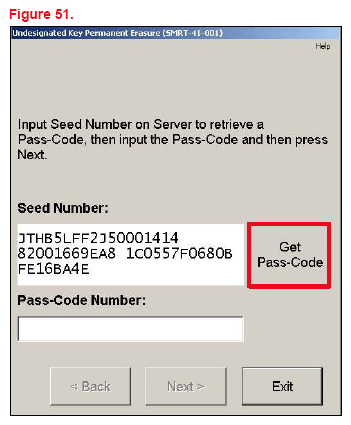

  8. Select Get Pass-Code.
    G16936942

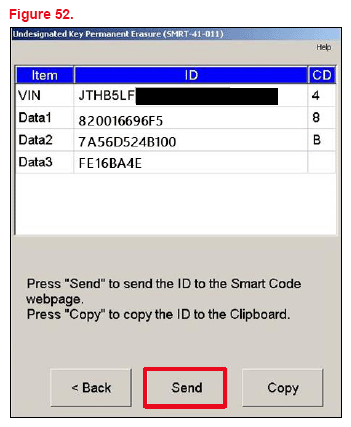

  9. Select Send to open a link to TIS.
    G16936943
  10. Make sure the Add/Remove Key tab is selected.
  11. Enter the password and select Login.
    G16936944
  12. Make sure each text box is populated with the correct information from the previous screen.
  13. Select Submit.
    G16936945

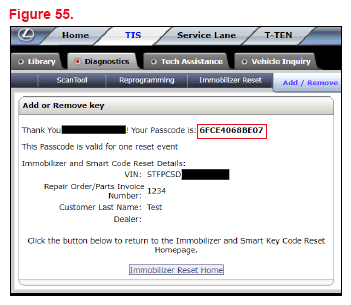

  14. The bolded passcode may be copied and pasted back into GTS+.
    G16936946

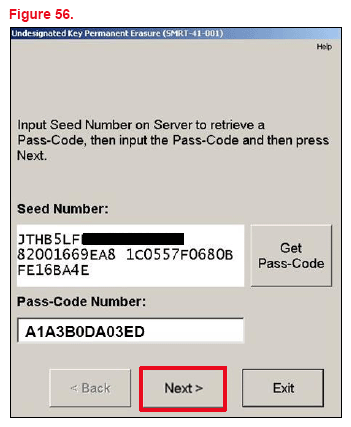

  15. Copy and paste the number into the Pass-Code Number text box.
  16. Select Next.
    G16936947

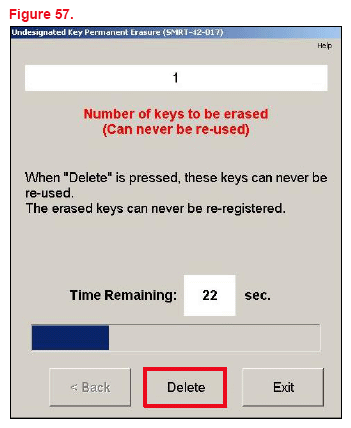

  17. One at a time, touch the keys to the ignition switch. The vehicle will beep once per key.
  18. Once ALL keys have touched the ignition switch, select Delete to permanently remove ALL keys that did NOT touch the ignition switch.
    NOTE: There is a 30-second timer for this procedure.
    G16936948
  19. Undesignated Key Permanent Erasure is now complete. The keys that were NOT touched to the ignition will no longer work on ANY vehicle.
  20. Select Exit.
    G16936949
