Removal [10/2018 - ]: Procedure

  1. REMOVE FRONT TURN SIGNAL LIGHT BULB

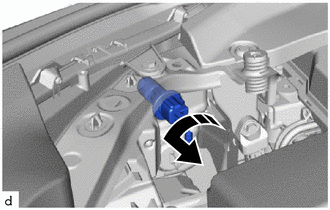

    1. Disconnect the front turn signal light bulb with the front turn signal light socket and wire sub-assembly as shown in the illustration.
      GTY793347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

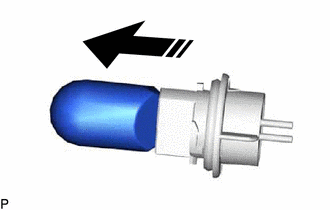

    2. Remove the front turn signal light bulb as shown in the illustration.
      GTY837927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
