Removal [10/2018 - 07/2022]: Procedure

Refer to PROCEDURE - Step 1 Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 2 Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 13 Refer to PROCEDURE - Step 13

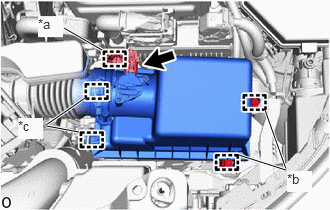

1. Disconnect the mass air flow meter connector and disengage the wire harness clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Wire Harness Clamp
   *b	Clamp
   *c	Guide

2. Disengage the 2 clamps and 2 guides.
3. Disengage the guide to disconnect the vacuum switching valve assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 2 Ventilation Hose
   *2	Hose Clip
   *3	Hose Clamp

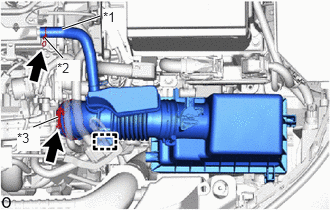

4. Slide the hose clip to disconnect the No. 2 ventilation hose from the cylinder head cover sub-assembly.
5. Loosen the hose clamp to remove the air cleaner cap with air cleaner hose from the throttle body with motor assembly.

1. Disconnect the throttle body with motor assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

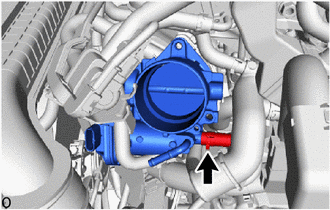

2. Slide the clip and disconnect the No. 8 water by-pass hose from the throttle body with motor assembly.

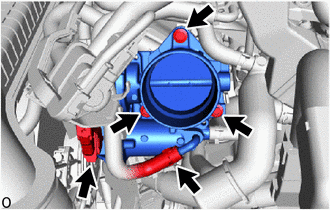

3. Using an 8 mm socket wrench, remove the 3 bolts to separate the throttle body with motor assembly from the intake manifold.
4. Slide the clip and disconnect the No. 5 water by-pass hose to remove the throttle body with motor assembly.
   NOTE:

   If the throttle body with motor assembly has been struck or dropped, replace it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

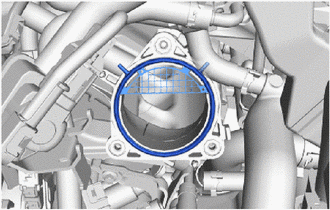

1. Remove the throttle body gasket from the intake manifold.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
