Removal [10/2018 - 07/2022]: Procedure

  1. REMOVE STARTER ASSEMBLY

    Refer to REMOVAL [10/2018 - 07/2022]

  2. REMOVE CRANKSHAFT POSITION SENSOR

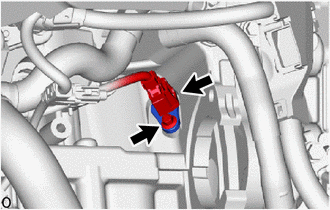

    1. Disconnect the crankshaft position sensor connector.
      GTY833288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using an 8 mm socket wrench, remove the bolt and crankshaft position sensor from the cylinder block sub-assembly.
      NOTE:

      If the crankshaft position sensor has been struck or dropped, replace it.
