Components [10/2018 - 07/2022]

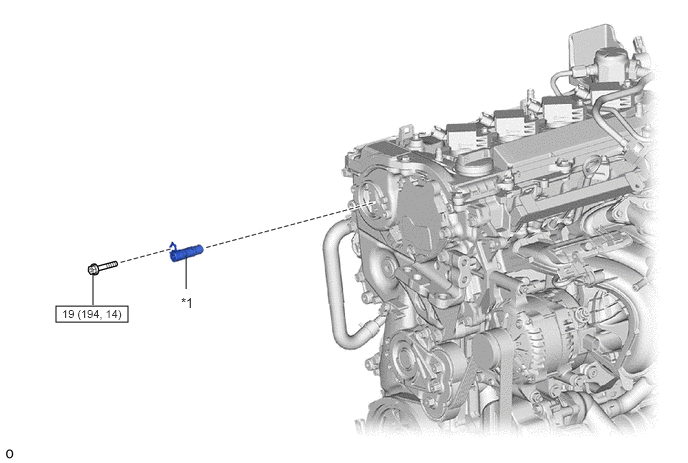

Fig 1: Camshaft Oil Control Valve Replacement Components With Torque Specifications
GTY838443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY) - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
