Removal [07/2022 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch is turned off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [07/2022 - ]

  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to REMOVAL [07/2022 - ]

  3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  4. REMOVE FRONT NO. 1 CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 22

  5. REMOVE NO. 1 AIR DUCT

    Refer to PROCEDURE - Step 10

  6. REMOVE BRAKE PEDAL STROKE SENSOR ASSEMBLY

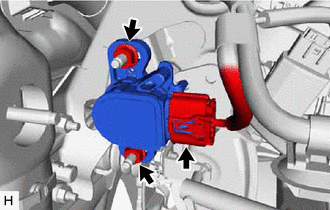

    1. Disconnect the connector from the brake pedal stroke sensor assembly.
      GTY557803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and brake pedal stroke sensor assembly from the brake pedal support assembly.
      NOTE:
      • Do not drop the brake pedal stroke sensor assembly.
      • If the brake pedal stroke sensor assembly has been dropped, replace the brake pedal stroke sensor assembly with a new one.
