Installation [07/2022 - ]: Procedure

  1. INSTALL ID CODE BOX (IMMOBILISER CODE ECU)

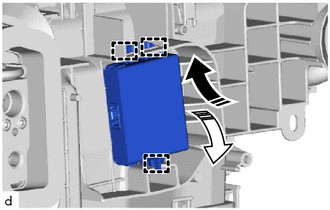

    1. Engage the guides to install the ID code box (immobiliser code ECU) as shown in the illustration.
      GTY779683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
  2. INSTALL AIR CONDITIONER UNIT ASSEMBLY

    Refer to INSTALLATION [07/2022 - ]
