Installation [09/2015 - ]: Procedure

INSTALL SEMICONDUCTOR POWER INTEGRATION ECU

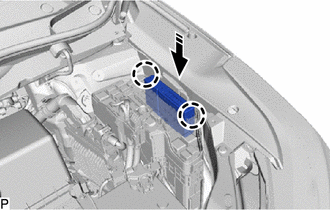

Engage the 2 claws to install the semiconductor power integration ECU as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL NO. 1 RELAY BLOCK COVER

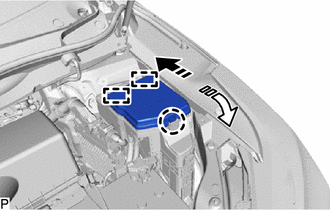

Engage the 2 guides and claw to install the No. 1 relay block cover as indicated by the arrows, in the order shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Install in this Direction (1)
	Install in this Direction (2)

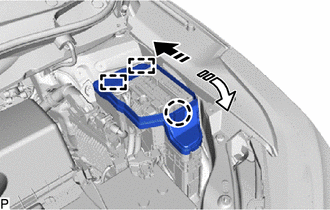

Engage the 2 guides and claw to install the No. 1 relay block cover as indicated by the arrows, in the order shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Install in this Direction (1)
	Install in this Direction (2)

INSTALL RESERVOIR BRACKET
Refer to PROCEDURE - Step 10 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 11 [12/2017 - ]

CONNECT BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

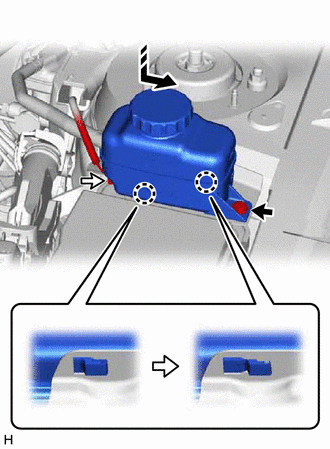

Move the brake master cylinder reservoir assembly as shown in the illustration to engage the 2 claws.

Connect the reservoir level switch connector and install the bolt.
Torque: 9.0 N.m (92 kgf/cm, 80 in.lbf)

CONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [09/2015 - 08/2016] , or refer to INITIALIZATION [08/2016 - 12/2017] , or refer to INITIALIZATION [12/2017 - 08/2019] , or refer to INITIALIZATION [08/2019 - ]
