Components [09/2015 - 12/2017]

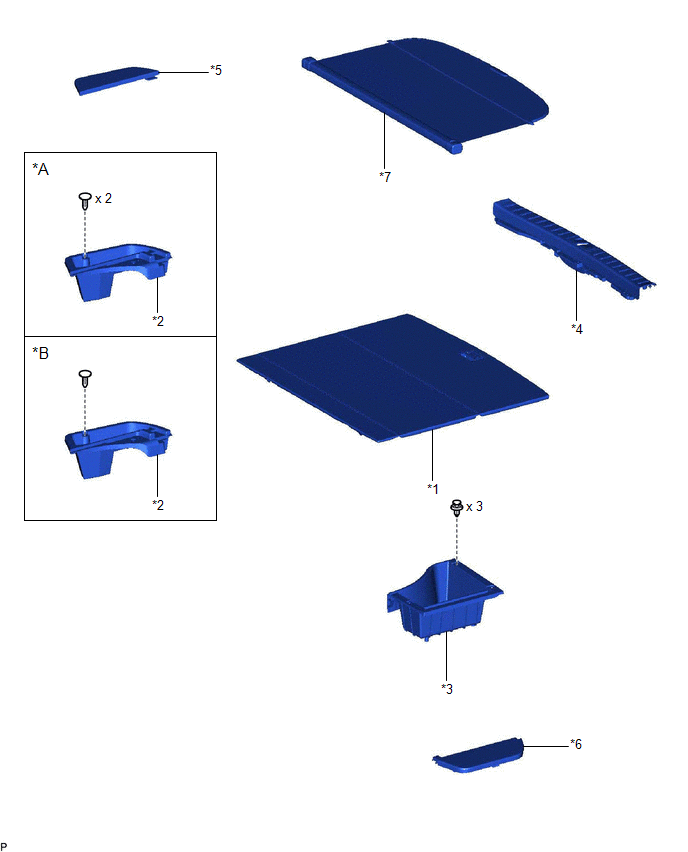

Fig 1: Door Control Receiver Replacement Components (1 Of 2) [09/2015 - 12/2017]
GTY681159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for TMC Made *B for TMMC Made
*1 DECK BOARD ASSEMBLY *2 DECK SIDE TRIM BOX RH
*3 REAR DECK FLOOR BOX *4 REAR FLOOR FINISH PLATE
*5 REAR NO. 3 FLOOR BOARD *6 REAR NO. 4 FLOOR BOARD
*7 TONNEAU COVER ASSEMBLY - -

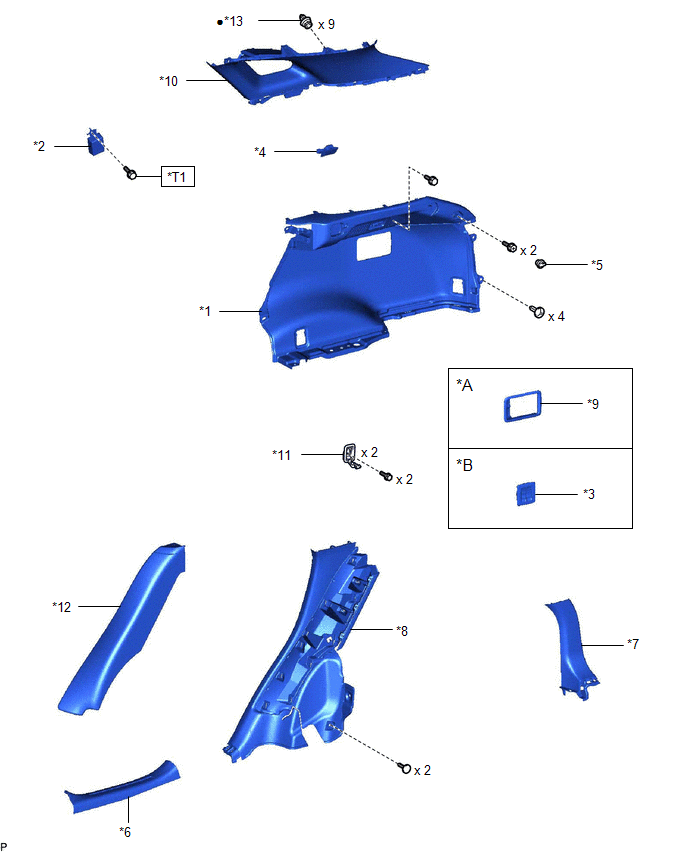

Fig 2: Door Control Receiver Replacement Components (2 Of 2) [09/2015 - 12/2017]
GTY789901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/o Rear Power Seat System *B w/ Rear Power Seat System
*1 DECK TRIM SIDE PANEL ASSEMBLY RH *2 ELECTRICAL KEY AND TIRE PRESSURE WARNING ECU AND RECEIVER
*3 FOLD SEAT SWITCH ASSEMBLY *4 NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
*5 NO. 1 LUGGAGE COMPARTMENT TRIM HOOK *6 REAR DOOR SCUFF PLATE RH
*7 REAR FLOOR FINISH SIDE PLATE RH *8 REAR SEAT SIDE GARNISH RH
*9 RECLINING REMOTE CONTROL BEZEL RH *10 ROOF SIDE INNER GARNISH ASSEMBLY RH
*11 ROPE HOOK ASSEMBLY *12 UPPER QUARTER TRIM PAD RH
*13 CLIP - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
*T1 for Type A: 8.3 (85, 73 in.*lbf)
for Type B: 10 (102, 7)		 - -
