Replacement [09/2014 - ]: Procedure

Refer to REMOVAL [09/2014 - ]

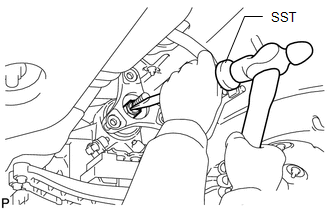

1. Using SST and a hammer, release the staked part of the lock nut.
   • SST: 09930-00010
   NOTE:

   • Use SST with the tapered part facing the shaft.
   • Do not modify the tip of SST with a grinder or other device.
   • Completely release the staked part of the lock nut before removing it.
   • Do not damage the threads of the shaft.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

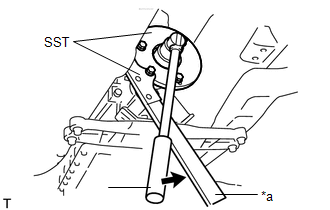

2. Using SST and a 30 mm deep socket wrench, remove the lock nut.
   • SST: 09330-00021
   • SST: 09950-30012
     1. 09955-03040

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Hold
   *b	Turn

3. Remove SST.
4. Tap the automatic transmission flange yoke assembly with a plastic hammer to remove it.

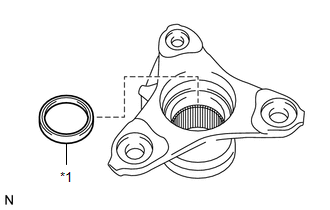

5. Using a screwdriver, remove the oil seal from the automatic transmission flange yoke assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1

   Oil Seal

   NOTE:

   Do not damage the automatic transmission flange yoke assembly.

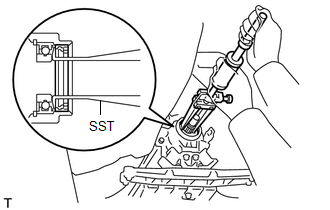

1. Using SST, remove the automatic transmission rear oil seal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09308-00010

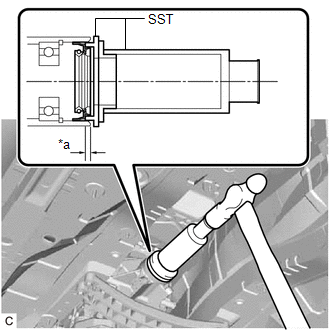

1. Using SST and a hammer, install a new automatic transmission rear oil seal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Depth

   • SST: 09316-60011
     1. 09316-00011
     2. 09316-00041
   • SST: 09316-12010

   Standard Depth

   3.3 to 3.7 mm (0.130 to 0.146 in.)

2. Coat the lip of the automatic transmission rear oil seal with MP grease.

1. Using SST and a hammer, install a new oil seal.
   • SST: 09517-36010

   Standard Depth

   0 to 0.3 mm (0 to 0.0118 in.)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Depth

2. Coat the lip of the oil seal with MP grease.
3. Install the automatic transmission flange yoke assembly.

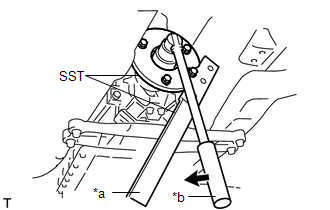

4. Using SST and a 30 mm deep socket wrench, install a new lock nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Hold
   *b	Turn

   • SST: 09330-00021
   • SST: 09950-30012
     1. 09955-03040

   Torque: 135 N.m (1377 kgf/cm, 100 ft.lbf)

5. Using a chisel and hammer, securely stake the lock nut.

Refer to INSTALLATION [09/2014 - 01/2023] , or refer to INSTALLATION [01/2023 - ]
