Removal [01/2023 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [11/2017 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [01/2023 - 10/2023]

  3. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure for the RH side and LH side.

    Refer to PROCEDURE - Step 3

  4. REMOVE FRONT DOOR OPENING TRIM COVER RH

    HINT:

    Use the same procedure for the RH side and LH side.

    Refer to PROCEDURE - Step 4

  5. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22

  6. REMOVE ABSORBER CONTROL ECU
    1. Fold back the floor carpet.
    2. Disengage the 2 clamps and separate the connector holder from the vehicle body.
      NOTE:

      Do not apply excessive force to the wire harnesses.

      GTY502858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the 3 connectors.

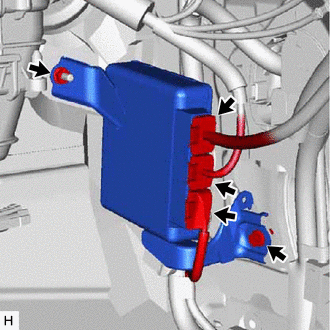

      GTY497620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the bolt, nut and absorber control ECU.
      NOTE:
      • Avoid any impact to the absorber control ECU.
      • Do not drop the absorber control ECU. If it is dropped, replace it with a new one.
