Installation [09/2014 - ]: Procedure

  1. INSTALL FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Side)
    1. Install the front seat belt anchor plate as shown in the illustration.
      GTY509670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the front seat inner belt assembly LH with the nut.

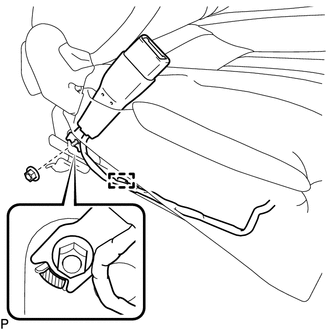

      GTY521424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protruding Part

      Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

      NOTE:

      Do not allow the anchor part of the front seat inner belt assembly LH to overlap the protruding part of the front seat adjuster.

    3. Engage the clamp.
    4. Engage each clamp under the front seat assembly.
    5. Connect each connector under the front seat assembly.
  2. INSTALL FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Side)
    1. Install the front seat belt anchor plate as shown in the illustration.
      GTY512875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the front seat inner belt assembly RH with the nut.

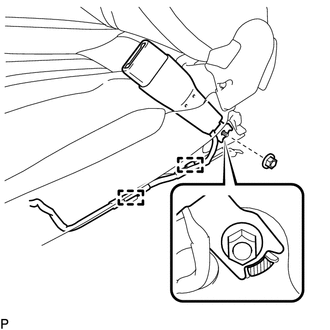

      GTY521398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protruding Part

      Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

      NOTE:

      Do not allow the anchor part of the front seat inner belt assembly RH to overlap the protruding part of the front seat adjuster.

    3. Engage the 2 clamps.
    4. Engage each clamp under the front seat assembly.
    5. Connect each connector under the front seat assembly.
  3. INSTALL FRONT SEAT ASSEMBLY

    Refer to INSTALLATION [09/2014 - ]
