Parts Location [09/2014 - ]: Illustration

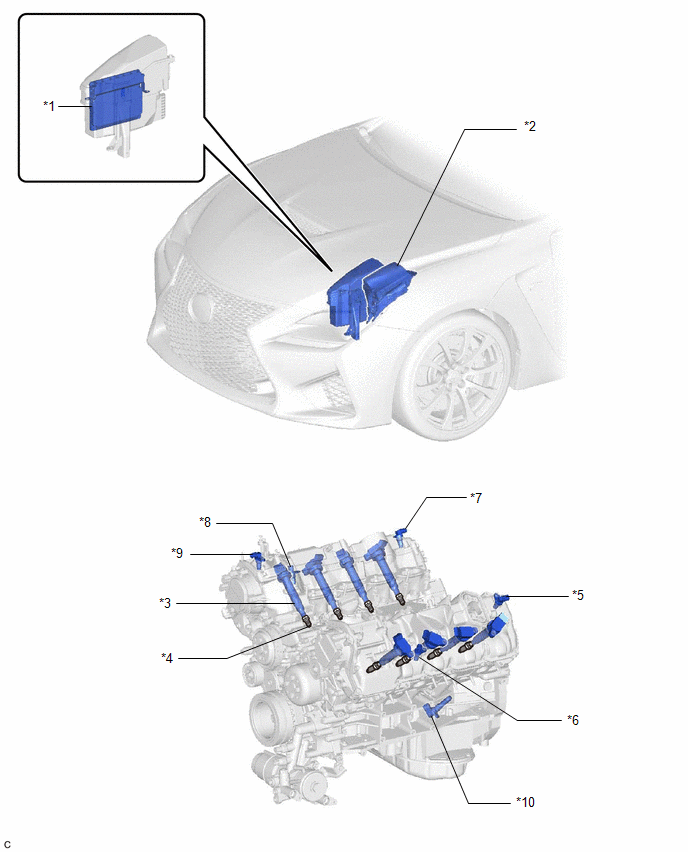

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | ECM | *2 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY |
| *3 | IGNITION COIL ASSEMBLY | *4 | SPARK PLUG |
| *5 | VVT SENSOR (for Intake Side of Bank 1) | *6 | VVT SENSOR (for Exhaust Side of Bank 1) |
| *7 | VVT SENSOR (for Intake Side of Bank 2) | *8 | VVT SENSOR (for Exhaust Side of Bank 2) |
| *9 | CAMSHAFT POSITION SENSOR | *10 | CRANKSHAFT POSITION SENSOR |
