Inspection [09/2014 - ]: Procedure
- INSPECT FUEL SENDER GAUGE ASSEMBLY

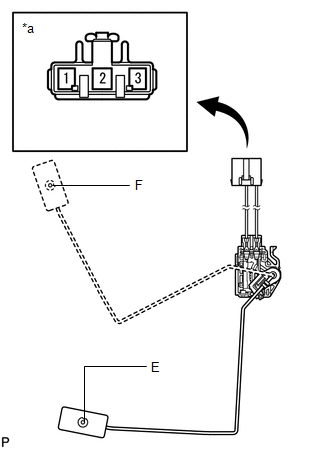

- Check that the float moves smoothly between F and E.
*a Component without harness connected
(Fuel Sender Gauge Assembly) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Float Level Specified Condition 1 - 2 F 6.5 to 8.5 Ω Between F and E 6.5 to 199.4 Ω (Gradually changes) E 194.4 to 199.4 Ω - If the result is not as specified, replace the fuel sender gauge assembly.
- Check that the float moves smoothly between F and E.
- INSPECT NO. 2 FUEL SENDER GAUGE ASSEMBLY
- Check that the float moves smoothly between F and E.
*a Component without harness connected
(No. 2 Fuel Sender Gauge Assembly) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Float Level Specified Condition 1 - 2 F 6.5 to 8.5 Ω Between F and E 6.5 to 216.1 Ω (Gradually changes) E 210.1 to 216.1 Ω - If the result is not as specified, replace the No. 2 fuel sender gauge assembly.
- Check that the float moves smoothly between F and E.
