Components [09/2014 - ]

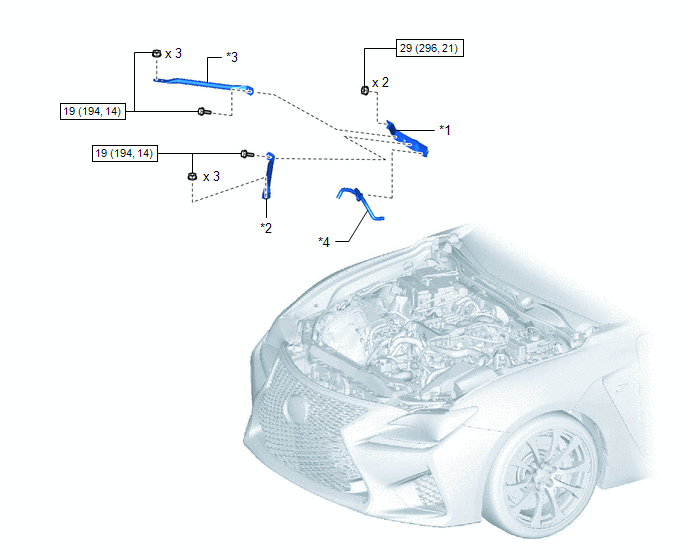

Fig 1: Fuel Injector (Port Injection) Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT SUSPENSION UPPER BRACE BRACKET	*2	FRONT SUSPENSION UPPER TO COWL BRACE LH
*3	FRONT SUSPENSION UPPER TO COWL BRACE RH	*4	UNION TO CHECK VALVE HOSE
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

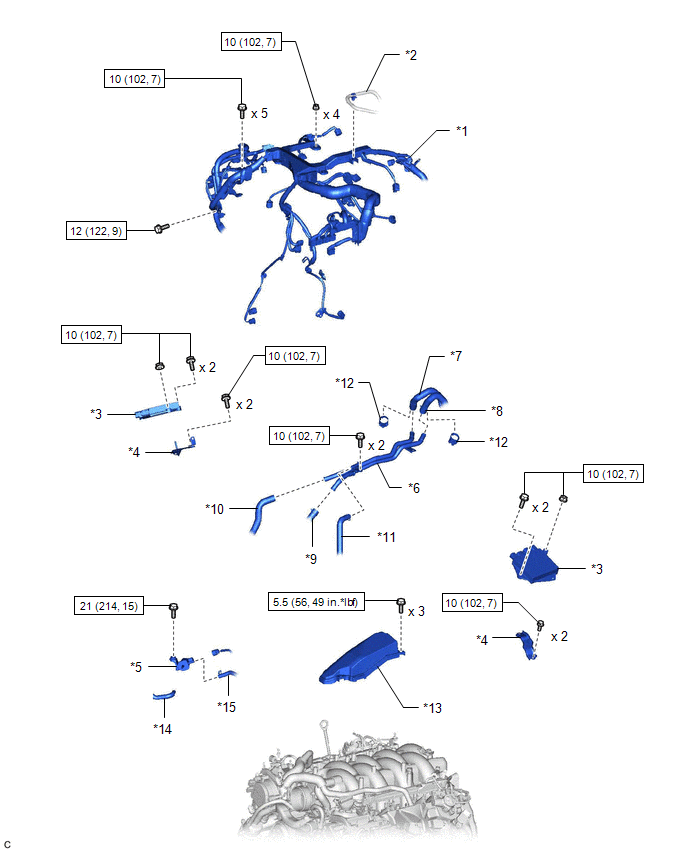

Fig 2: Fuel Injector (Port Injection) Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	ENGINE WIRE	*2	FUEL TUBE SUB-ASSEMBLY
*3	INJECTOR DRIVER	*4	INJECTOR DRIVER BRACKET
*5	PURGE VALVE (PURGE VSV)	*6	WATER BY-PASS PIPE SUB-ASSEMBLY
*7	HEATER WATER OUTLET HOSE	*8	HEATER WATER INLET HOSE
*9	WATER BY-PASS HOSE	*10	NO. 3 WATER BY-PASS HOSE
*11	NO. 5 WATER BY-PASS HOSE	*12	WATER HOSE SET
*13	ENGINE ROOM ECU COVER	*14	FUEL VAPOR FEED HOSE
*15	NO. 1 FUEL VAPOR FEED HOSE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

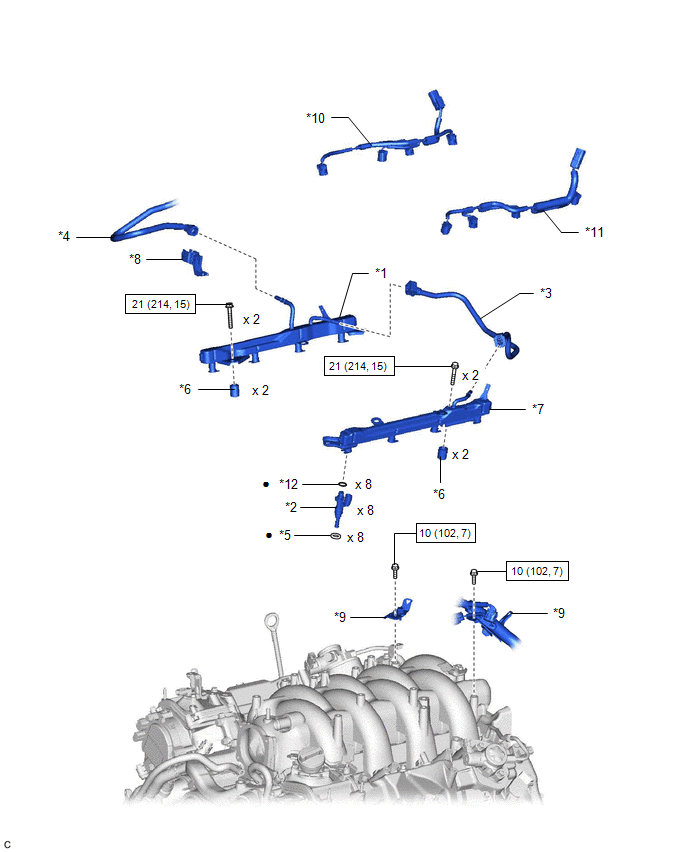

Fig 3: Fuel Injector (Port Injection) Replacement Components With Torque Specifications (3 Of 3)

*1	FUEL DELIVERY PIPE SUB-ASSEMBLY	*2	FUEL INJECTOR ASSEMBLY
*3	FUEL TUBE SUB-ASSEMBLY	*4	NO. 2 FUEL TUBE SUB-ASSEMBLY
*5	INJECTOR VIBRATION INSULATOR	*6	NO. 1 DELIVERY PIPE SPACER
*7	NO. 2 FUEL DELIVERY PIPE SUB-ASSEMBLY	*8	EFI FUEL PIPE CLAMP
*9	WIRE HARNESS BRACKET	*10	NO. 6 ENGINE WIRE
*11	NO. 7 ENGINE WIRE	*12	O-RING
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
