Components [09/2014 - 10/2015]

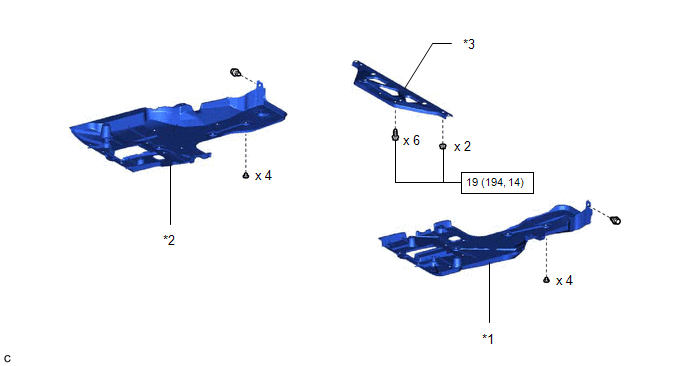

Fig 1: Exhaust Pipe Replacement Components With Torque Specifications [09/2014 - 10/2015] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT CENTER FLOOR COVER LH	*2	FRONT CENTER FLOOR COVER RH
*3	FRONT CENTER FLOOR BRACE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

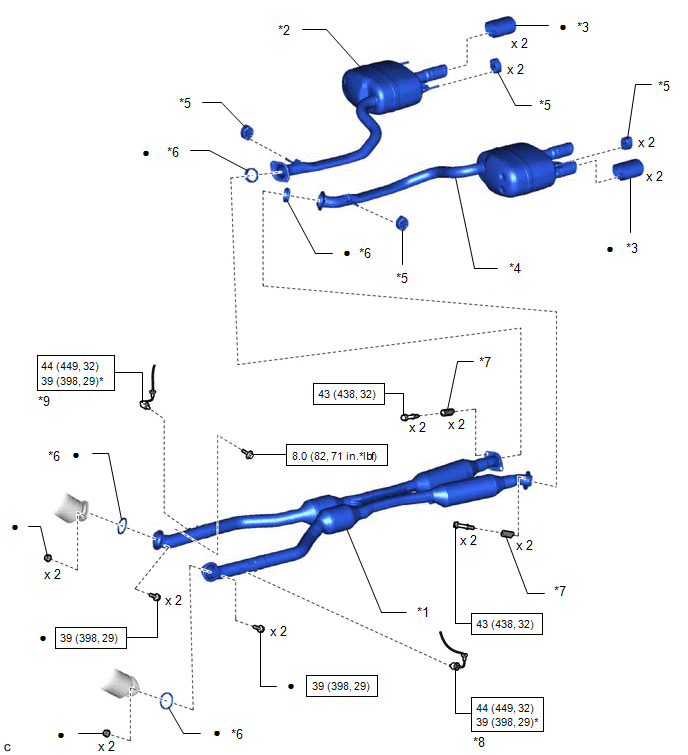

Fig 2: Exhaust Pipe Replacement Components With Torque Specifications [09/2014 - 10/2015] (2 Of 2)

*1	FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)	*2	TAIL EXHAUST PIPE ASSEMBLY
*3	TAIL EXHAUST PIPE BAFFLE SUB-ASSEMBLY	*4	TAIL EXHAUST PIPE LH
*5	EXHAUST PIPE SUPPORT	*6	EXHAUST PIPE GASKET
*7	COMPRESSION SPRING	*8	HEATED OXYGEN SENSOR (for Bank 1)
*9	HEATED OXYGEN SENSOR (for Bank 2)	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST
•	Non-reusable part	-	-
