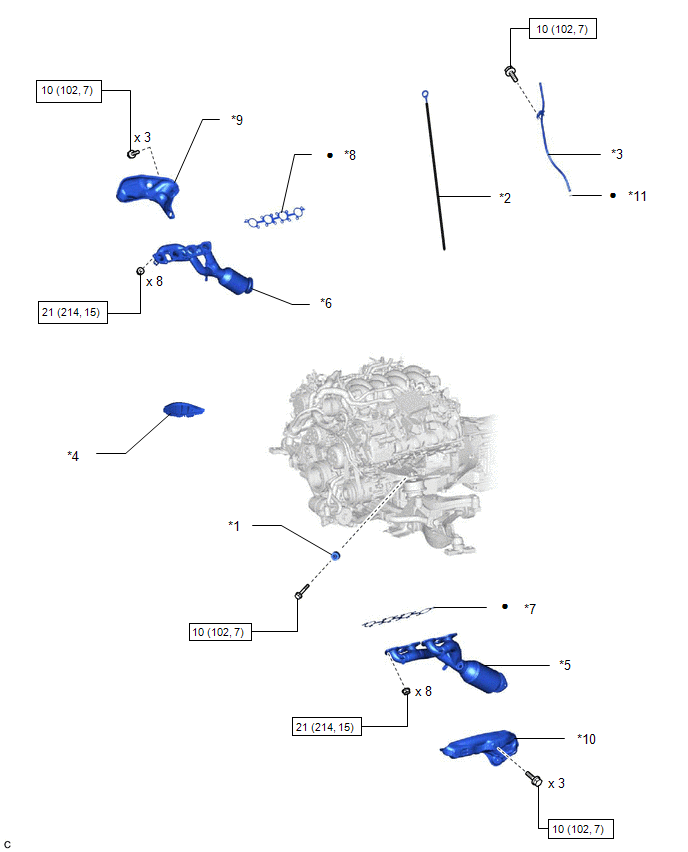

Components [09/2014 - ]
| *1 | ENGINE MOUNTING DAMPER | *2 | ENGINE OIL LEVEL DIPSTICK |
| *3 | ENGINE OIL LEVEL DIPSTICK GUIDE | *4 | ENGINE UNDER COVER SUB-ASSEMBLY RH |
| *5 | EXHAUST MANIFOLD SUB-ASSEMBLY LH (TWC: Front Catalyst) | *6 | EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst) |
| *7 | EXHAUST MANIFOLD TO HEAD GASKET (for Bank 1) | *8 | EXHAUST MANIFOLD TO HEAD GASKET (for Bank 2) |
| *9 | NO. 1 EXHAUST MANIFOLD HEAT INSULATOR | *10 | NO. 2 EXHAUST MANIFOLD HEAT INSULATOR |
| *11 | O-RING | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
