Components [09/2014 - ]

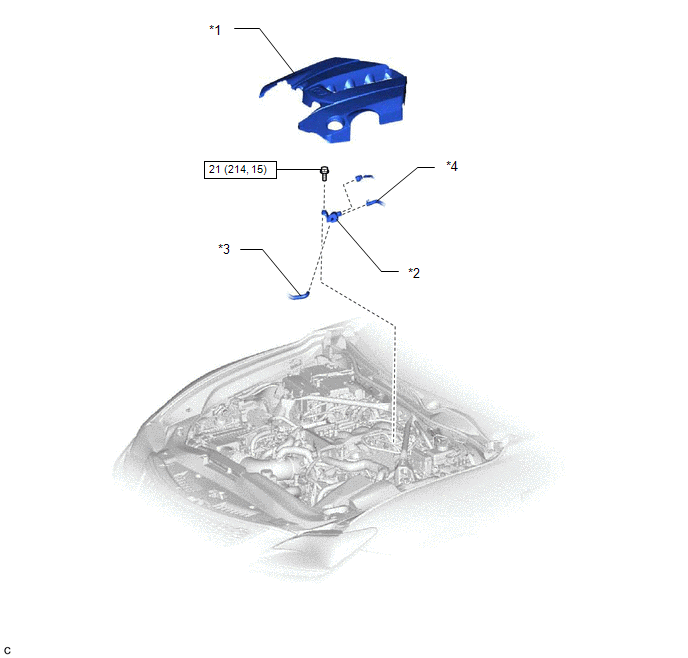

Fig 1: Purge Valve Replacement Components With Torque Specifications
GTY496888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 V-BANK COVER SUB-ASSEMBLY *2 PURGE VALVE (PURGE VSV)
*3 FUEL VAPOR FEED HOSE *4 NO. 1 FUEL VAPOR FEED HOSE
N.m (kgf/cm, ft.lbf): Specified torque - -
