Inspection [09/2020 - ]: Procedure

  1. INSPECT FUEL TANK CAP ASSEMBLY
    1. Visually check that the fuel tank cap assembly and gasket are not deformed or damaged.
      GTY444169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Gasket

      If the fuel tank cap assembly or gasket is deformed or damaged, replace it.

    2. Confirm that ID mark V is printed on the fuel tank cap assembly.
      WARNING:

      Make sure to use a fuel tank cap assembly that has the correct ID mark, or a malfunction may occur in the fuel system.

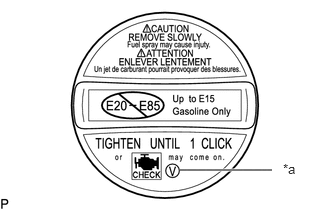

      GTY768200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a ID Mark
