Inspection [09/2014 - 09/2020]: Procedure

  1. INSPECT FUEL TANK CAP ASSEMBLY
    1. Visually check that the fuel tank cap assembly and gasket are not deformed or damaged.
      GTY444169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Gasket

      If the fuel tank cap assembly or gasket is deformed or damaged, replace it.

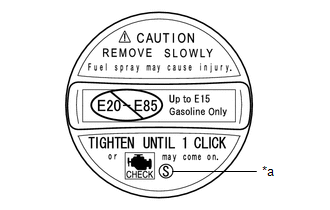

    2. Confirm that ID mark S is printed on the fuel tank cap assembly.
      GTY433387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a ID Mark
      WARNING:

      Make sure to use a fuel tank cap assembly that has the correct ID mark, or a malfunction may occur in the fuel system.
