Components [01/2023 - ]

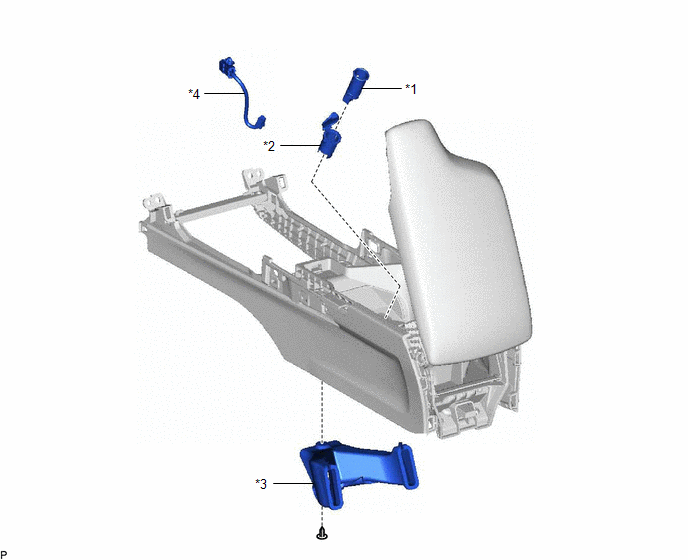

Fig 1: Power Outlet Socket Replacement Components [01/2023 - ]
GTY1243042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 POWER OUTLET SOCKET ASSEMBLY *2 NO. 1 POWER OUTLET SOCKET COVER
*3 NO. 2 CONSOLE BOX DUCT *4 ACCESSORY SOCKET WIRE
