Installation [01/2023 - ]: Procedure

  1. INSTALL FRONT WIPER DEICER SWITCH

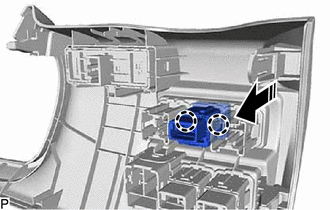

    1. Engage the 2 claws to install the front wiper deicer switch as shown in the illustration.
      GTY1138330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 33

  3. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 34

  4. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 35
