Removal [09/2014 - ]: Procedure

  1. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL

    Refer to PROCEDURE - Step 5 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 5 [03/2019 - ]

  2. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY

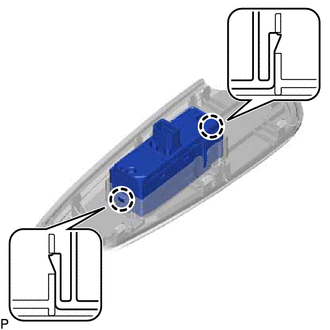

    1. Disengage the 2 claws to remove the power window regulator switch assembly from the front door armrest base panel.
      GTY516444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
