Installation [09/2014 - ]: Procedure

  1. INSTALL FRONT LUMBAR POWER SEAT SWITCH

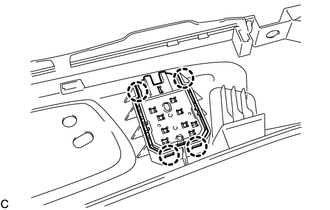

    1. Engage the 4 claws to install the front lumbar power seat switch to the front seat cushion shield.
      GTY498927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL POSITION CONTROL ECU AND SWITCH ASSEMBLY

    See step  1

  3. INSTALL RECLINING POWER SEAT SWITCH KNOB

    See step  37

  4. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

    See step  38

  5. INSTALL FRONT SEAT CUSHION SHIELD

    See step  42

  6. INSTALL INNER NO. 1 FRONT SEAT CUSHION SHIELD

    See step  43

  7. CONNECT FRONT SEATBACK PAD WITH COVER

    See step  44

  8. INSTALL FRONT SEAT ASSEMBLY

    Refer to INSTALLATION [09/2014 - ]
