Reassembly [09/2014 - ]: Procedure

  1. INSTALL SEAT ADJUSTER COVER CAP

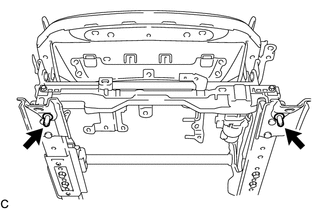

    1. Install the 2 seat adjuster cover caps.
      GTY518142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT SEAT WIRE RH (for Front Passenger Side)
    1. Connect each connector and engage each clamp to install the front seat wire RH.
  3. INSTALL FRONT SEAT WIRE
    1. Connect each connector and engage each clamp to install the front seat wire.
  4. INSTALL FRONT SEAT CUSHION SPRING SUB-ASSEMBLY

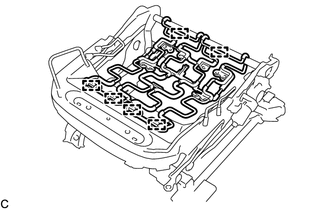

    1. Engage the 6 hooks to install the front seat cushion spring sub-assembly to the front seat adjuster assembly.
      GTY498479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Climate Control Seat System:

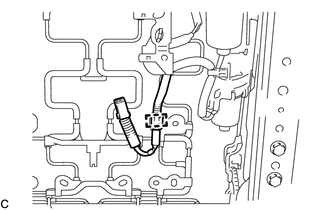

      GTY517709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Engage the clamp.
  5. INSTALL FRONT SEAT CUSHION EDGE PROTECTOR LH
    1. Engage the 3 claws to install the front seat cushion edge protector LH.
    2. Install the screw.

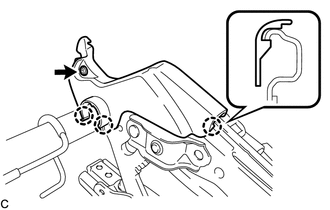

      GTY499370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL FRONT SEAT CUSHION EDGE PROTECTOR RH

    HINT:

    Perform the same procedure as for the LH side.

  7. INSTALL FRONT SEAT LOWER CUSHION SHIELD LH
    1. Engage the clip (B) to install the front seat lower cushion shield LH.

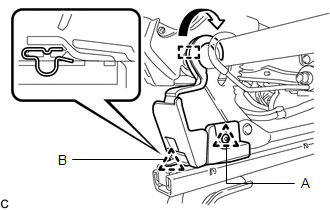

      GTY506681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the hook as shown in the illustration.
    3. Engage the clip (A).
  8. INSTALL FRONT SEAT LOWER CUSHION SHIELD RH

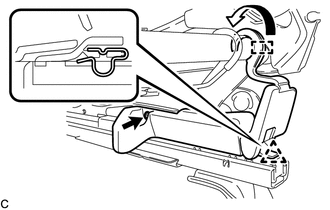

    1. Engage the clip to install the front seat lower cushion shield RH.
      GTY517909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the hook as shown in the illustration.
    3. Install the screw.
  9. INSTALL SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY (w/ Climate Control Seat System)
    1. Engage the 2 hooks to install the seat cushion climate control blower assembly.

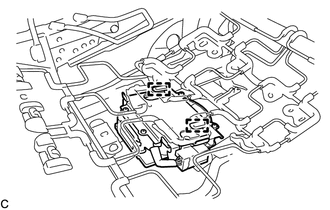

      GTY498478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

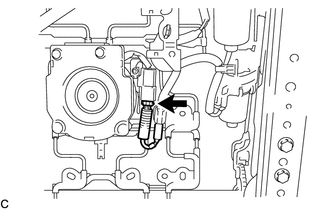

    2. Connect the connector.
      GTY498477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL SEAT CUSHION CLIMATE CONTROL BRACKET (w/ Climate Control Seat System)

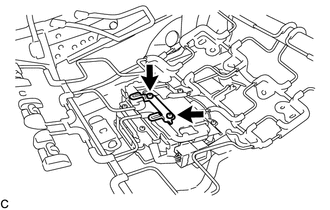

    1. Install the seat cushion climate control bracket to the seat cushion climate control blower assembly with the 2 screws.
      GTY498476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL SEAT CUSHION CLIMATE CONTROL DUCT (w/ Climate Control Seat System)

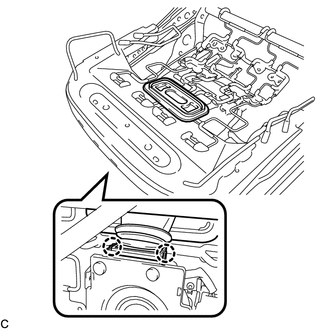

    1. Engage the 2 claws to install the seat cushion climate control duct to the seat cushion climate control blower assembly.
      GTY517708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL FRONT SEAT CUSHION PAD WITH COVER

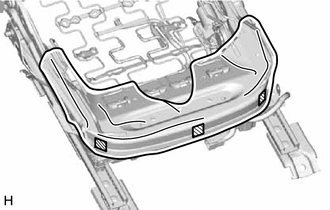

    1. Install each double-sided tape to install the front seat cushion edge protector.
      GTY953366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape
    2. Temporarily install the front seat cushion pad with cover.
      NOTE:

      Be careful not to damage the front seat cushion pad with cover.

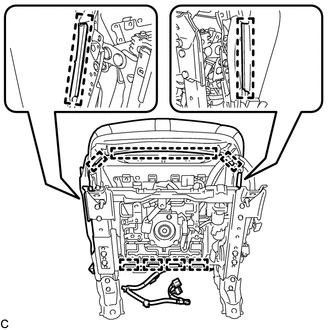

    3. Engage the 9 hooks to install the front seat cushion pad with cover.
      GTY518138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Engage the hook.

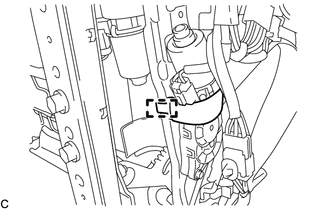

      GTY515678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. for Front Passenger Side:
      1. Engage the claw to install the connector.
        GTY498471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. w/ Seat Heater System:
      1. Connect the connector.

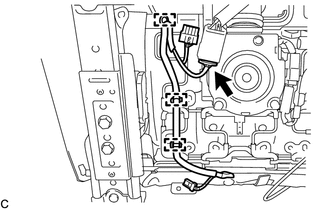

        GTY498470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Engage the 3 clamps.
  13. INSTALL NO. 2 FRONT SEAT WIRE
    1. Connect each connector and engage each clamp to install the No. 2 front seat wire.
  14. INSTALL RECLINING ADJUSTER EQUALIZING CABLE ASSEMBLY

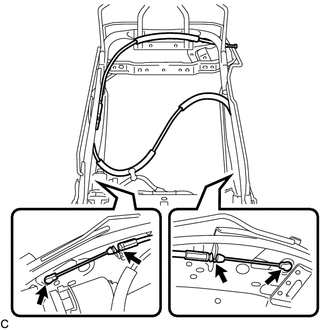

    1. Connect the reclining adjuster equalizing cable assembly to install it.
      GTY500389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the clamp (A) and install the clamp (B).

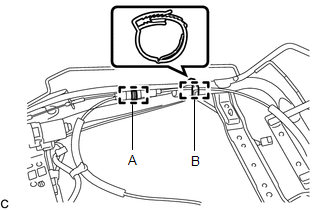

      GTY513444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL FRONT SEATBACK HOOK (for Driver Side)
    1. Install the 2 front seatback hooks to the lumbar support adjuster assembly.
  16. INSTALL FRONT SEATBACK HOOK (for Front Passenger Side)
    1. Install the 2 front seatback hooks to the front seatback spring sub-assembly.
  17. INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY (for Driver Side)

    See step  2

  18. INSTALL FRONT SEATBACK SPRING SUB-ASSEMBLY (for Front Passenger Side)
    1. Engage the 2 guides.

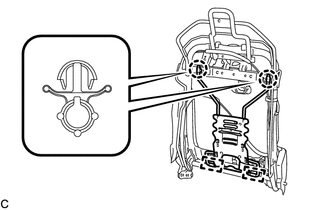

      GTY500400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 claws to install the front seatback spring sub-assembly to the front seatback frame sub-assembly.
    3. Install the clamp.

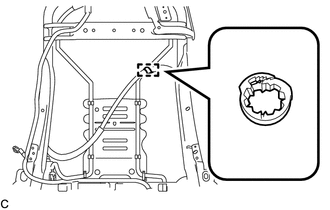

      GTY499385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL FRONT SEATBACK EDGE PROTECTOR

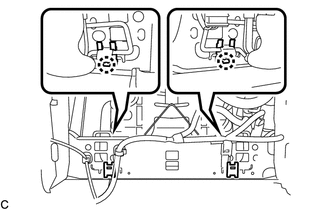

    1. Engage each claw to install the 2 front seatback edge protectors to the front seatback frame sub-assembly.
      GTY498902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL LIMIT SWITCH ASSEMBLY (for LH Side)
    1. Engage the 2 guides to install the limit switch assembly.
      GTY500427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the screw.
  21. INSTALL LIMIT SWITCH ASSEMBLY (for RH Side)
    1. Engage the 2 guides to install the limit switch assembly.
      GTY498847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the screw.
    3. Connect the connector.
  22. INSTALL RECLINING ADJUSTER INSIDE COVER LH

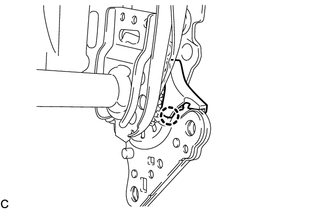

    1. Engage the claw to install the reclining adjuster inside cover LH.
      GTY499375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL RECLINING ADJUSTER INSIDE COVER RH

    HINT:

    Perform the same procedure as for the LH side.

  24. INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER RH

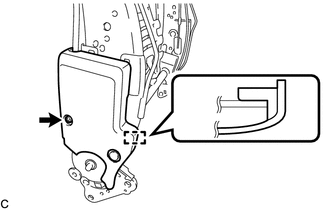

    1. Engage the guide to install the LH seat reclining adjuster inside cover RH.
      GTY517910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the screw.
  25. INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER LH

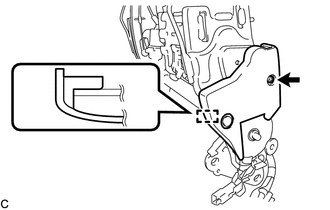

    1. Engage the guide to install the LH seat reclining adjuster inside cover LH.
      GTY499376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the screw.
  26. INSTALL SEATBACK CLIMATE CONTROL BLOWER (w/ Climate Control Seat System)

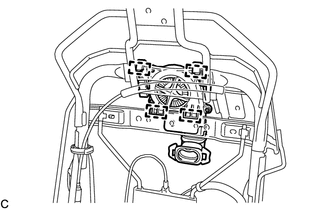

    1. Engage the 4 hooks to install the seatback climate control blower.
      GTY500398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

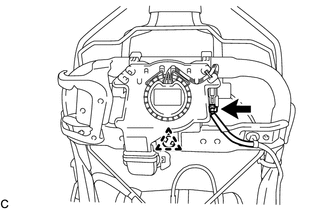

    2. Install the clip.
      GTY518135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the connector.
  27. INSTALL FRONT SEAT AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 1

  28. INSTALL FRONT SEATBACK PAD WITH COVER

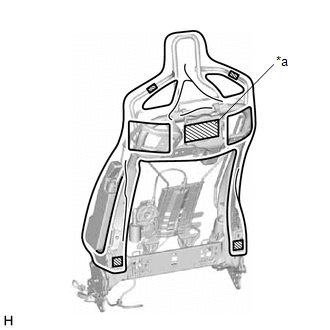

    1. Install each double-sided tape to install the front seatback edge protector.
      GTY953129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a w/ Climate Control Seat System
      Double-sided Tape
    2. Temporarily install the front seatback pad with cover.
      NOTE:

      Be careful not to damage the front seatback pad with cover.

    3. Engage the 2 brackets and install the front seatback pad with cover with the 2 nuts.
      GTY508326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bracket

      Torque: 5.5 N.m (56 kgf/cm, 49 in.lbf)

      NOTE:
      • For vehicles with a front seat airbag assembly, the front seatback pad with cover must be securely installed. Otherwise, the front seat airbag assembly may not deploy properly.
      • Make sure that the strap is not twisted after installing the nut.
      • Install the brackets securely.
    4. w/ Climate Control Seat System:
      1. Engage the 2 claws to install the seatback climate control blower to the front seatback pad with cover.
        GTY498843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Close the 2 fasteners.
      GTY517792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Insert the 2 tabs.
      GTY504511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Tab

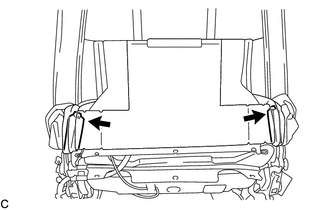

    7. Insert the 2 fasteners.
      GTY498521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

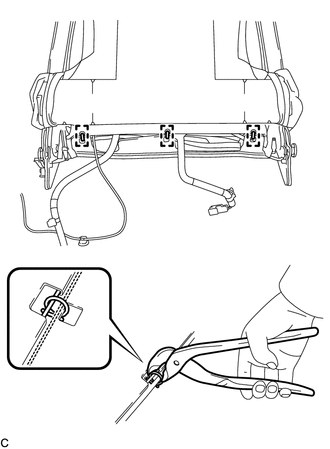

    8. Using hog ring pliers, install 3 new hog rings.
      NOTE:
      • Be careful not to damage the front seatback pad with cover.
      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the front seatback pad with cover.
      GTY500407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL NO. 3 FRONT SEAT SHOULDER BELT GUIDE
    1. Install a new No. 3 front seat shoulder belt guide.

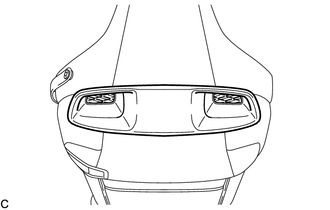

      GTY500404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL NO. 1 FRONT SEAT SHOULDER BELT GUIDE

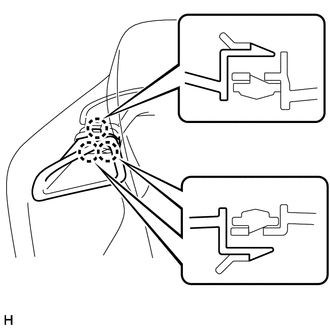

    1. Engage the 3 claws to install a new No. 1 front seat shoulder belt guide.
      GTY510507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL NO. 2 FRONT SEAT SHOULDER BELT GUIDE

    HINT:

    Perform the same procedure as for the No. 1 front seat shoulder belt guide.

  32. INSTALL RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY

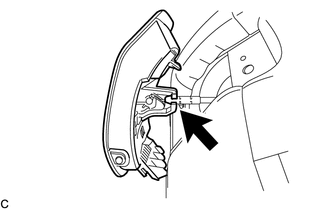

    1. Connect the reclining adjuster equalizing cable assembly to the reclining remote control lever sub-assembly.
      GTY498856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

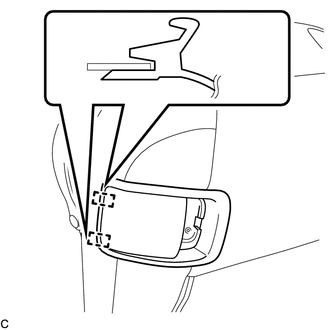

    2. Engage the 2 guides to install the reclining remote control lever sub-assembly.
      GTY500394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 2 screws.
      GTY500396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL RECLINING REMOTE CONTROL CAP
    1. Engage the claw and 2 guides to install the reclining remote control cap.

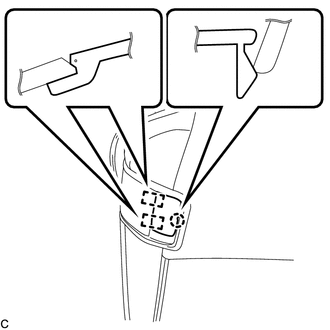

      GTY500390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY

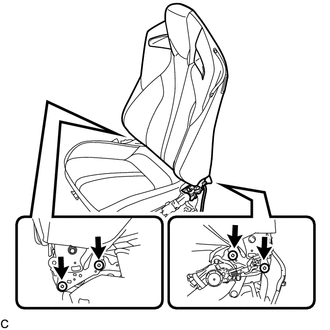

    1. Using a T40 "TORX" socket wrench, install the separate type front seatback assembly to the separate type front seat cushion assembly with the 4 bolts.
      GTY500393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

    2. Install the clip.
      GTY498899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. w/ Seat Heater System:
      1. Engage the clamp.
        GTY498861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Connect the connector.
    4. Engage the claw and 3 clamps.

      HINT:

      Engage the claw first.

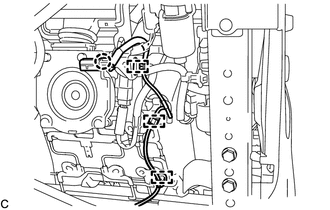

      GTY498467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

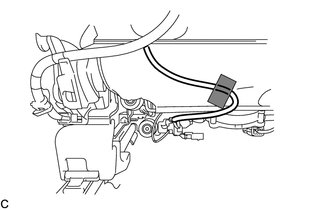

    5. Engage the fastener to secure the front seat airbag assembly wire harness.
      GTY508783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fastener

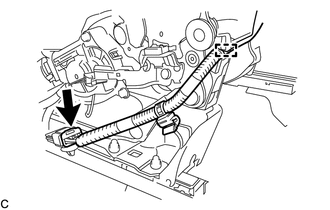

    6. Engage the clamp.
      GTY498897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Connect the connector.

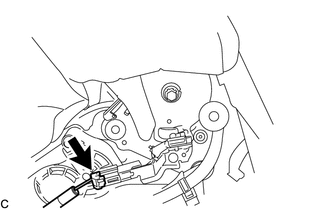

    8. Connect the connector.
      GTY498898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. INSTALL FRONT LUMBAR POWER SEAT SWITCH (for Driver Side)

    See step  1

  36. INSTALL POSITION CONTROL ECU AND SWITCH ASSEMBLY

    See step  1

  37. INSTALL RECLINING POWER SEAT SWITCH KNOB
    1. Engage the 4 claws to install the reclining power seat switch knob.

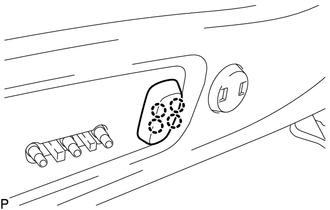

      GTY502215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
    1. Engage the 4 claws to install the slide and vertical power seat switch knob.
      GTY502216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. INSTALL FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Side)

    Refer to PROCEDURE - Step 1

  40. INSTALL FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Side)

    Refer to PROCEDURE - Step 2

  41. INSTALL FRONT SEAT INNER CUSHION SHIELD

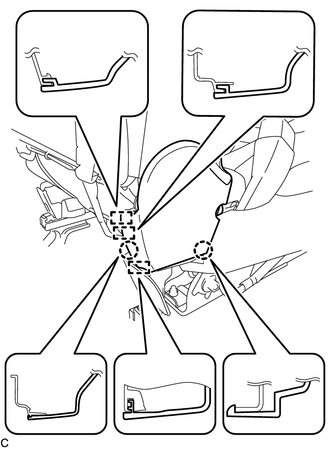

    1. Engage the 2 claws and 3 guides to install the front seat inner cushion shield.
      GTY504085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the screw.
      GTY504086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. INSTALL FRONT SEAT CUSHION SHIELD
    1. for Driver Side:

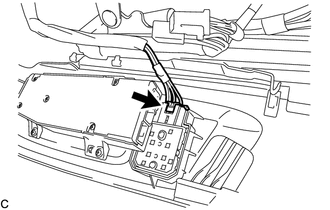

      1. GTY518947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Connect the connector to the front lumbar power seat switch.

    2. Connect the 2 connectors to the position control ECU and switch assembly.

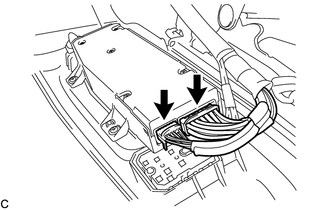

      GTY504087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

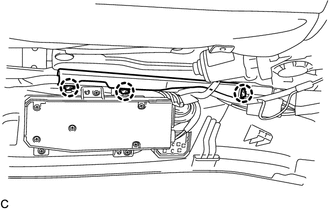

    3. Engage the 3 claws to close the wire harness cover.
      GTY504073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

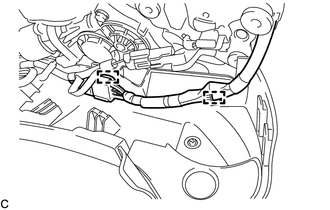

    4. Engage the 2 clamps.
      GTY518944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Engage the 2 guides and clip to install the front seat cushion shield.

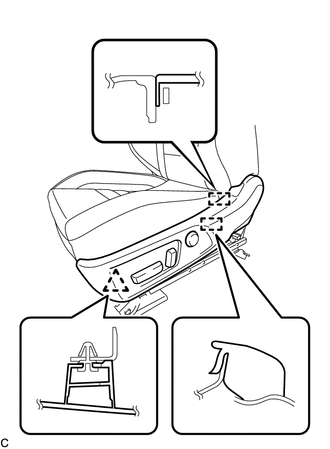

      GTY504072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

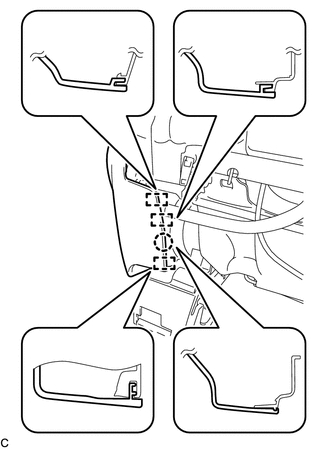

    6. Engage the claw and 3 guides.
      GTY504076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. INSTALL INNER NO. 1 FRONT SEAT CUSHION SHIELD

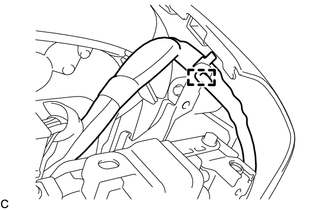

    1. Engage the clamp.
      GTY500411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

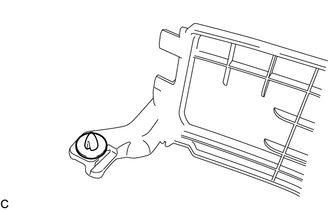

    2. Install the clip to the inner No. 1 front seat cushion shield.
      GTY504074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

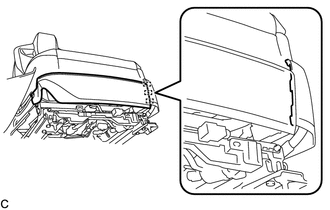

    3. Engage the 3 guides to install the inner No. 1 front seat cushion shield.
      GTY500420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

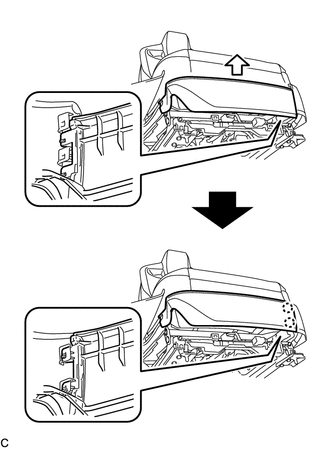

    4. GTY521081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Slide

      Engage the 2 claws as shown in the illustration.

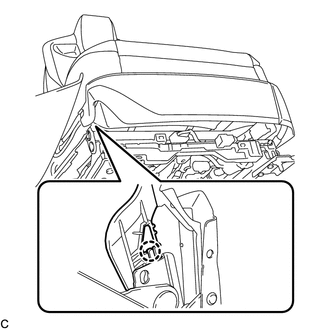

    5. Engage the claw.
      GTY500422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

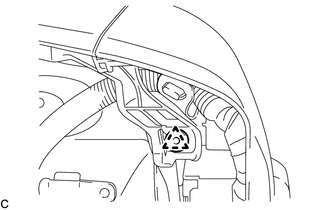

    6. Engage the clip.
      GTY504077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

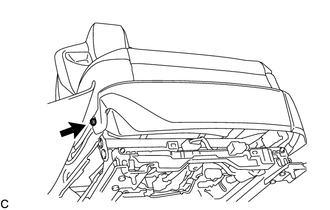

    7. Install the screw.
      GTY500424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

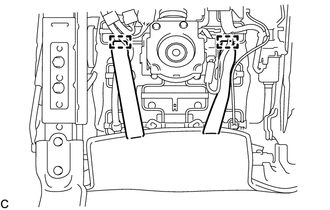

  44. CONNECT FRONT SEATBACK PAD WITH COVER
    1. Engage the 2 hooks to connect each rubber band of the front seatback pad with cover.
      GTY518942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. INSTALL SEAT HEATER CONTROL SUB-ASSEMBLY (w/ Seat Heater System)

    See step  1

  46. INSTALL OCCUPANT DETECTION ECU (for Front Passenger Side)

    Refer to PROCEDURE - Step 1

  47. INSTALL SEAT POSITION AIRBAG SENSOR (for Driver Side)

    Refer to PROCEDURE - Step 1

scientia non olet · About Mike's Workshop Manuals
