Mirror System (Ext) - Service Information
>>
Outer Rear View Mirror Cover
>>
Components [03/2019 - ]
Components [03/2019 - ]

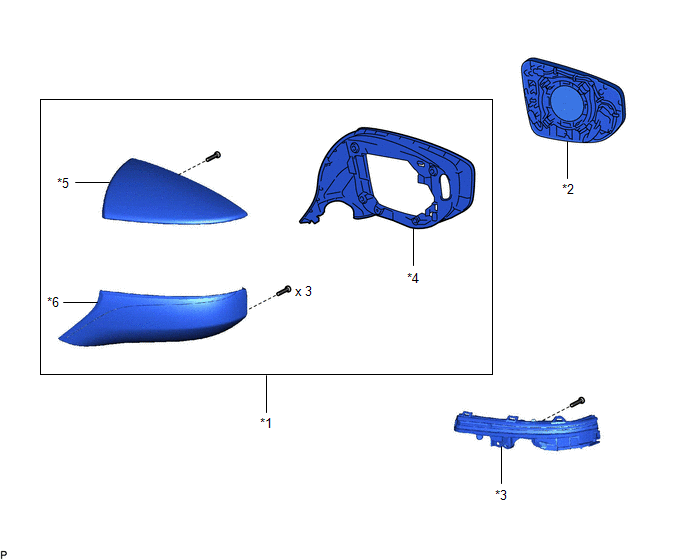

Fig 1: Outer Rear View Mirror Cover Replacement Components [03/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
NO. 2 OUTER MIRROR COVER
*2
OUTER MIRROR
*3
SIDE TURN SIGNAL LIGHT ASSEMBLY
*4
VISOR ASSEMBLY
*5
VISOR COVER A
*6
VISOR COVER B
