Removal [09/2014 - ]: Procedure

  1. REMOVE AIR CONDITIONING UNIT ASSEMBLY

    Refer to REMOVAL [09/2014 - 11/2017] , or refer to REMOVAL [11/2017 - 01/2023] , or refer to REMOVAL [01/2023 - ]

  2. REMOVE ID CODE BOX (IMMOBILISER CODE ECU)

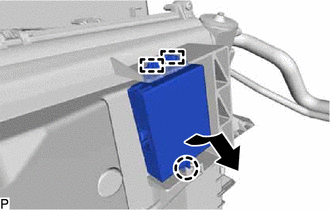

    1. Disengage the claw as shown in the illustration.
      GTY458477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides and remove the ID code box (immobiliser code ECU).
