Installation [09/2014 - ]: Procedure

  1. INSTALL ID CODE BOX (IMMOBILISER CODE ECU)

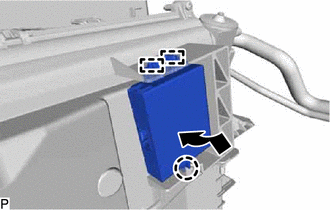

    1. Engage the 2 guides.
      GTY458476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the claw as shown in the illustration to install the ID code box (immobiliser code ECU).
  2. INSTALL AIR CONDITIONING UNIT ASSEMBLY

    Refer to INSTALLATION [09/2014 - 11/2017] , or refer to INSTALLATION [11/2017 - 03/2019] , or refer to INSTALLATION [03/2019 - 01/2023] , or refer to INSTALLATION [01/2023 - ]
