Installation [11/2017 - 09/2020]: Procedure

INSTALL BACK-UP BATTERY

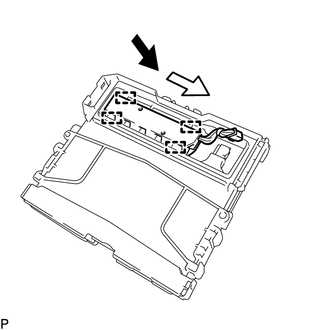

Move the back-up battery in the direction indicated by the arrow (1) shown in the illustration to temporarily install it.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Install in this Direction (1)
	Install in this Direction (2)

Push the back-up battery in the direction indicated by the arrow (2) shown in the illustration to engage the 4 guides and install the back-up battery.
NOTE:
Make sure that the back-up battery is securely installed.

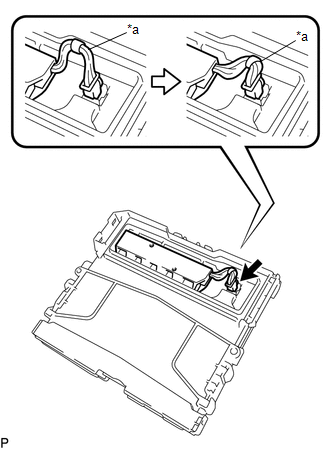

Connect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Wire Harness

NOTE:

Make sure that the connector is connected securely.

Tuck in the wire harness as shown in the illustration.
NOTE:
Make sure that the wire harness does not interfere with the battery cover.

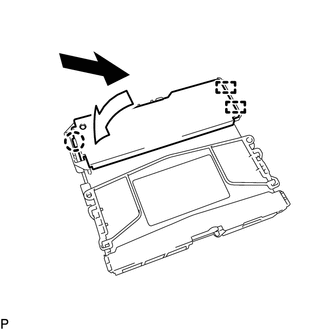

Engage the 2 guides and claw to install the battery cover as shown in the illustration.

	Install in this Direction (1)
	Install in this Direction (2)

NOTE:

Make sure that the battery cover is securely installed.
