Installation [09/2020 - ]: Procedure

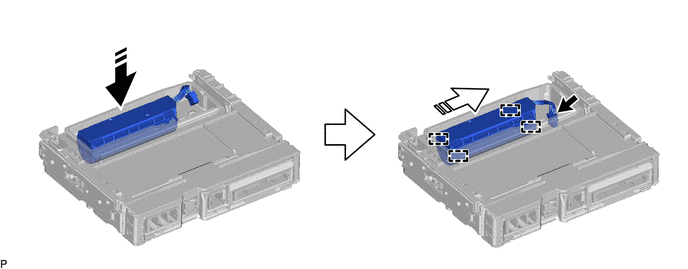

1. Move the back-up battery in the direction indicated by the arrow (1) shown in the illustration to temporarily install it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction (1)

   Install in this Direction (2)

2. Push the back-up battery in the direction indicated by the arrow (2) shown in the illustration to engage the 4 guides and install the back-up battery.
3. Connect the connector.
   NOTE:

   Make sure that the connector is connected securely.

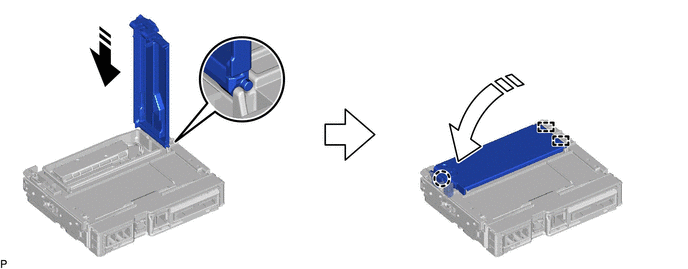

4. Engage the 2 guides and claw to install the transceiver cover as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction (1)

   Install in this Direction (2)

   NOTE:

   Make sure that the transceiver cover is securely installed.

Refer to INSTALLATION [09/2020 - ]

Refer to INITIALIZATION [09/2020 - ]
