Back-Up Battery
>>
Components [11/2017 - 09/2020]
Components [11/2017 - 09/2020]

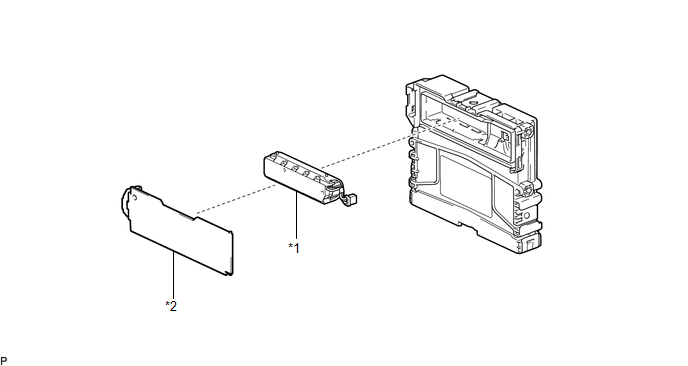

Fig 1: Back-Up Battery Replacement Components [11/2017 - 09/2020]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
BACK-UP BATTERY
*2
BATTERY COVER
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
