Components [09/2014 - ]

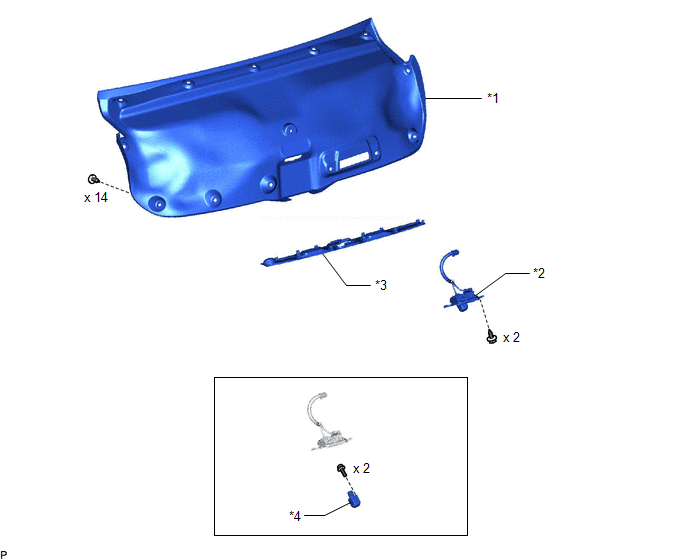

Fig 1: Television Camera Replacement Components
GTY501478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 LUGGAGE COMPARTMENT DOOR COVER *2 LUGGAGE ELECTRICAL KEY SWITCH WITH REAR TELEVISION CAMERA ASSEMBLY
*3 NO. 3 LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH *4 REAR TELEVISION CAMERA ASSEMBLY
