Inspection [01/2023 - ]: Procedure
- INSPECT BLIND SPOT MONITOR MAIN SWITCH (WARNING CANCELING SWITCH ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*a Component without harness connected
(Blind Spot Monitor Main Switch (Warning Canceling Switch Assembly))Standard Resistance

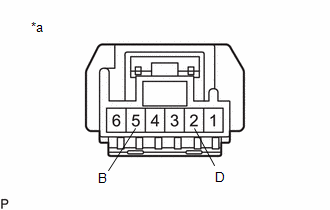

Tester Connection Condition Specified Condition 5 (B) - 2 (D) Blind spot monitor main switch on (not protruding) Below 25 Ω 5 (B) - 2 (D) Blind spot monitor main switch off (protruding) 1 MΩ or higher If the result is not as specified, replace the blind spot monitor main switch (warning canceling switch assembly).
- Check that the blind spot monitor indicator illuminates.
- Apply battery voltage to the blind spot monitor main switch (warning canceling switch assembly) and check that the switch illuminates.
*a Component without harness connected
(Blind Spot Monitor Main Switch (Warning Canceling Switch Assembly))OK

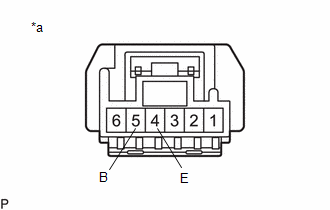

Connection Specified Condition Battery positive (+) → Terminal 5 (B)
Battery negative (-) → Terminal 4 (E)Illuminates If the result is not as specified, replace the blind spot monitor main switch (warning canceling switch assembly).
- Apply battery voltage to the blind spot monitor main switch (warning canceling switch assembly) and check that the switch illuminates.
- Check that the switch illuminates.
- Apply battery voltage to the blind spot monitor main switch (warning canceling switch assembly) and check that the switch illuminates.
*a Component without harness connected
(Blind Spot Monitor Main Switch (Warning Canceling Switch Assembly))OK

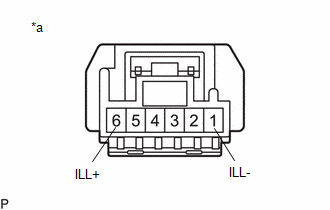

Connection Specified Condition Battery positive (+) → Terminal 6 (ILL+)
Battery negative (-) → Terminal 1 (ILL-)Illuminates If the result is not as specified, replace the blind spot monitor main switch (warning canceling switch assembly).
- Apply battery voltage to the blind spot monitor main switch (warning canceling switch assembly) and check that the switch illuminates.
- Measure the resistance according to the value(s) in the table below.
