Removal [09/2014 - 11/2017]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  2. REMOVE LOW PITCHED HORN ASSEMBLY

    Refer to PROCEDURE - Step 3

  3. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

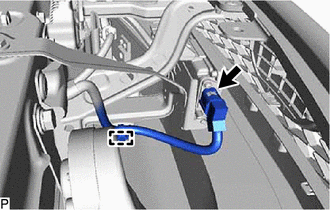

    1. Disconnect the connector.
      GTY501324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.

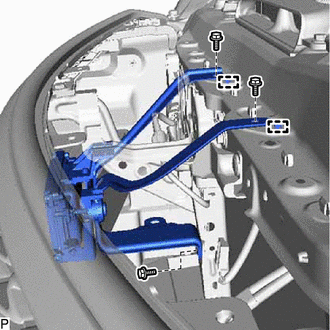

    3. Remove the 3 bolts.
      GTY501326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 2 guides.

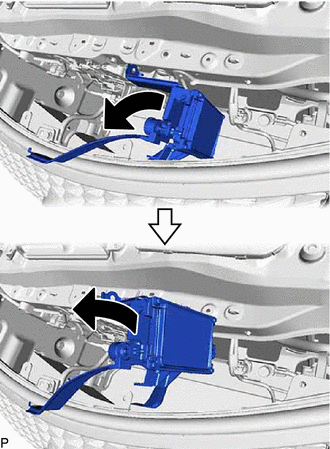

    5. Remove the millimeter wave radar sensor assembly as shown in the illustration.
      GTY505623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
