Adjustment [09/2014 - 11/2017]: Procedure

  1. ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY
    GTY509497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Approx. 10 m (32.8 ft.)
    *b Approx. 14 m (45.9 ft.)
    WARNING:

    Radio frequency radiation exposure information:

    • This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
    • This equipment should be kept with minimum distance of 20 cm (7.87 in.) between the radiator (antenna) and your body at all times during adjustment.
    • This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
    NOTE:
    • Perform measurements on a level surface.
    • Make sure that no large metal objects are within a 10 m (32.8 ft.) x 14 m (45.9 ft.) area in front of the vehicle. If possible, the surrounding area should also be free of large metal objects.
    1. Before adjusting the radar beam axis, prepare the vehicle as follows.
      1. Check the tire pressure and adjust it if necessary.
      2. Remove all excess weight from the vehicle (luggage, heavy objects, etc.).
      3. Remove the cool air intake duct seal (Refer to PROCEDURE - Step 1 ).
    2. Check and adjust the vertical direction of the radar sensor.
      GTY502838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Level
      1. Ensure that the radar sensor level rack is free from dust, oil and foreign matter.
      2. Set a level on the radar sensor level rack.
      3. Check that the air bubble of the level is within the red frame.

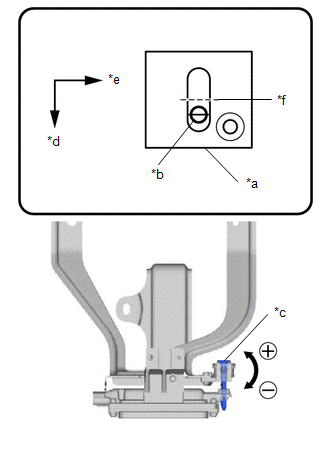

        GTY511587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Level
        *b Air Bubble
        *c Bolt
        *d Vehicle Front
        *e Vehicle Left
        *f 0°

        OK

        Air bubble of the level is within red frame.

        If the air bubble is not within the red frame, use a screwdriver to adjust the bolt until the air bubble is within the red frame.

        HINT:

        • The adjustable range within the level's red frame is +/- 0.2°.
        • The target angle is +0.2° (upward angle of 0.2°).

          Result

          Adjustment Direction Adjustment Procedure Adjustment Angle
          Upward Turn screwdriver to positive (+) side When screwdriver is turned once, angle changes approx. 0.14°
          Downward Turn screwdriver to negative (-) side
    3. Adjust the reflector height.

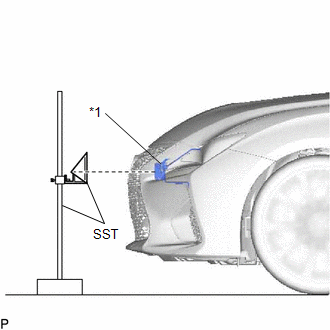

      GTY495314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Millimeter Wave Radar Sensor
      1. Adjust the reflector so that the center of SST (reflector) is the same height as the millimeter wave radar sensor.
        • SST: 09870-60000
          1. 09870-60010
        • SST: 09870-60040

        HINT:

        Prepare a 10 m (32.8 ft.) string, a string with a sharp-pointed weight (plumb bob) and a 5 m (16.4 ft.) tape measure.

    4. Place the reflector.
      1. Hang the string (with weight) from the center of the vehicle rear emblem. Mark the vehicle rear center point on the ground.
        GTY504487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a String *b Weight
        *c Center point *d Mark
      2. Repeat for the front of the vehicle.
        GTY498347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a String *b Weight
        *c Center point *d Mark
      3. Using tape and a string, create a line that connects the vehicle rear center point to the vehicle front center point and extends at least 5000 mm (16.4 ft.) beyond the vehicle front center point.
        GTY500243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Adjust center by moving string to right and left
        *b Extend string through front center point
      4. Mark a point (reflector placement point) on the line at a position 5000 mm (16.4 ft.) from the vehicle front center point.
      5. Place SST (reflector) at the marked position.
        NOTE:

        Perform the operation as precisely as possible.

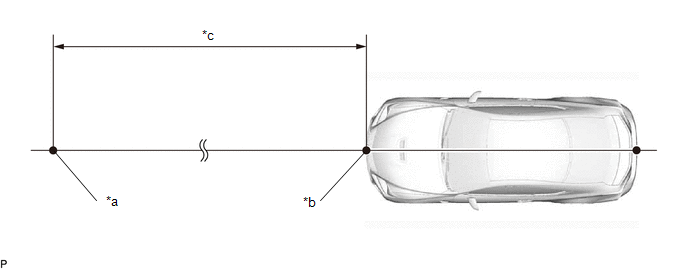

        GTY505735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Reflector Placement Point *b Millimeter Wave Radar Sensor Position
        *c 5000 mm (16.4 ft.) - -
    5. Check the radar beam axis.
      1. When using the Techstream:
        1. Connect the Techstream to the DLC3.
        2. Turn the engine switch on (IG).
        3. Turn the Techstream on and turn the cruise control main switch on.
        4. Enter the following menus: Powertrain / Radar Cruise / Utility.
        5. Follow the Techstream display and continue with the adjustment.
          WARNING:

          Do not come within 20 cm (7.87 in.) of the radar sensor.

          NOTE:
          • Turn the cruise control main switch on before pressing "Next".
          • Make sure there is at least 20 cm (7.87 in.) between the millimeter wave radar sensor and any nearby individuals.
          • If "Error beam axis" is displayed on the screen, press the "Yes" button, and repeat again.
          • Check that there are no metal objects in the specified area in front of the vehicle (refer to the NOTICE at the beginning of this adjustment procedure).

        Powertrain > Radar Cruise > Utility

        Tester Display
        Beam Axis Adjustment
      2. Press the "Exit" button to finish beam axis adjustment.
      3. Disconnect the Techstream from the DLC3.
    6. After adjusting the radar beam axis, return the vehicle to its original condition.
      1. Install the cool air intake duct seal (Refer to PROCEDURE - Step 2 ).
      2. If any heavy items were removed from the vehicle, return them (luggage, heavy objects, etc.).
