Removal [11/2017 - 01/2023]: Procedure

REMOVE NO. 2 FORWARD RECOGNITION COVER

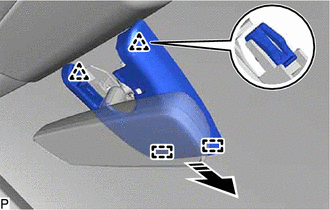

Pull the No. 2 forward recognition cover in the direction indicated by the arrow (1) shown in the illustration to disengage the 2 claws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Remove in this Direction (1)
	Remove in this Direction (2)

NOTE:

If these claws are disengaged separately, they may break. Insert a molding remover between them and pull it down to disengage the claws simultaneously.

Pull the No. 2 forward recognition cover in the direction indicated by the arrow (2) shown in the illustration to disengage the 2 guides and remove the No. 2 forward recognition cover.

REMOVE NO. 1 FORWARD RECOGNITION COVER

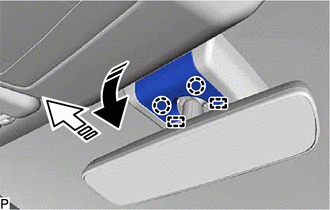

Disengage the 2 clips and 2 guides to remove the No. 1 forward recognition cover as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

NOTE:

To avoid damaging the guides, always slide the No. 1 forward recognition cover parallel to the windshield glass.

REMOVE FORWARD RECOGNITION LATCH

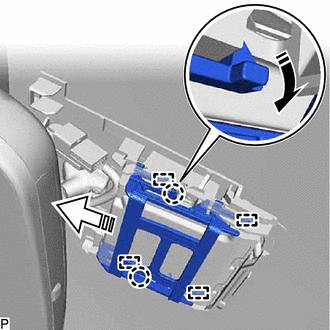

Disengage the 2 claws in the direction indicated by the arrow (1) shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Remove in this Direction (1)
	Remove in this Direction (2)

Disengage the 4 guides in the direction indicated by the arrow (2) shown in the illustration to remove the forward recognition latch.

REMOVE FORWARD RECOGNITION CAMERA

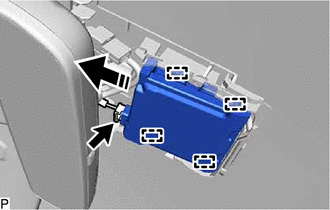

Disconnect the connector.

Remove in this Direction

Disengage the 4 guides and remove the forward recognition camera as shown in the illustration.
NOTE:
- Do not pull the harness forcibly when disconnecting the connector.
- If the forward recognition camera bracket is deformed or damaged, replace it together with the windshield glass.
- If the forward recognition camera has been struck or dropped, replace it with a new one.
- Do not touch the camera lens.
