Removal [09/2014 - ]: Procedure

  1. REMOVE HORN BUTTON ASSEMBLY

    Refer to REMOVAL [09/2014 - ]

  2. REMOVE CRUISE CONTROL MAIN SWITCH

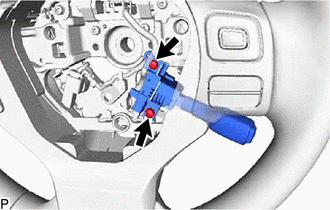

    1. Remove the 2 screws.
      GTY501527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

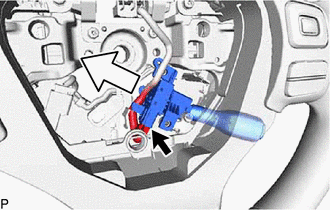

    2. Disconnect the connector and remove the cruise control main switch as shown in the illustration.
      GTY501528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
