Components [09/2014 - 01/2023]

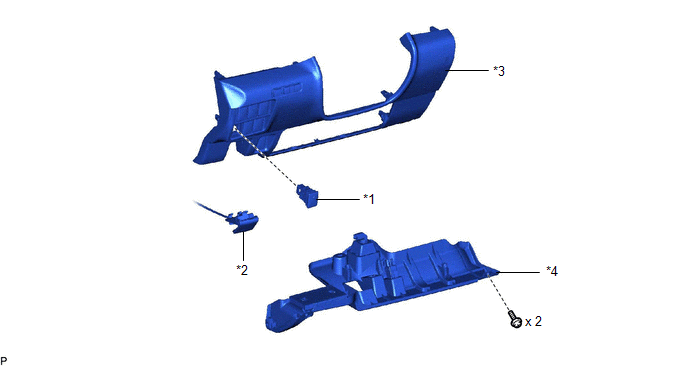

Fig 1: Blind Spot Monitor Main Switch Replacement Components [09/2014 - 01/2023]
GTY510099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BLIND SPOT MONITOR MAIN SWITCH ASSEMBLY (WARNING CANCELING SWITCH ASSEMBLY) *2 HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
*3 LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY *4 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
