Removal [09/2020 - ]: Procedure

  1. REMOVE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 2

  3. REMOVE REAR SEATBACK ASSEMBLY

    Refer to PROCEDURE - Step 7

  4. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR COVER

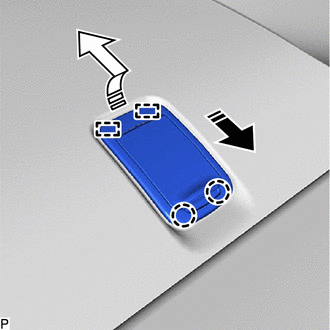

    1. Disengage the 2 guides and 2 claws as indicated by the arrows, in the order shown in the illustration to remove the child restraint seat tether anchor cover.
      GTY954027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  5. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET
    1. Remove the bolt.
      GTY512956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the child restraint seat tether anchor bracket.
