Installation [09/2014 - ]: Procedure

  1. INSTALL SCAVENGING PUMP ASSEMBLY

    See step  1

  2. INSTALL NO. 3 OIL PIPE

    See step  2

  3. INSTALL NO. 2 OIL PIPE

    See step  3

  4. INSTALL NO. 1 OIL PIPE

    See step  4

  5. INSTALL INLET WATER PIPE

    Refer to PROCEDURE - Step 49

  6. INSTALL TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL
    1. Apply MP grease to the lip of a new timing chain case or timing chain case oil seal.

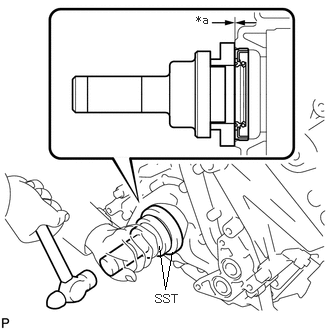

    2. Using SST and a hammer, tap in the timing chain case or timing chain case oil seal until its surface is flush with the timing chain cover assembly edge.
      GTY510059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Standard Depth
      • SST: 09506-3501009223-22010

      Standard Depth

      0 to 1.0 mm (0 to 0.0394 in.)

      NOTE:
      • Keep the lip free from foreign matter.
      • Do not tap in the timing chain case or timing chain case oil seal at an angle.
      • Do not tap in the oil seal excessively.
  7. INSTALL TIMING CHAIN COVER ASSEMBLY
    1. Remove any old packing remaining on the sealing surfaces before applying seal packing.

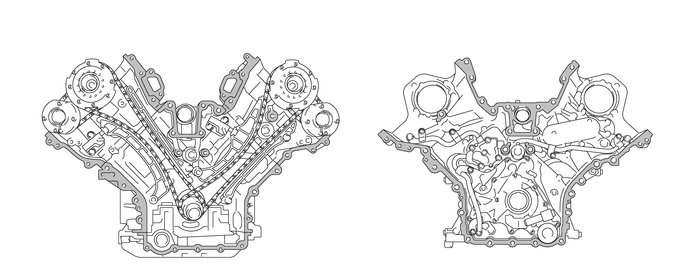

    2. Clean the contact surfaces of the timing chain cover assembly, cylinder head sub-assembly, cylinder head LH and cylinder block sub-assembly and confirm that there is no oil, moisture or other foreign matter on the surfaces.
      GTY496221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Area to be Cleaned and Degreased - -
    3. Install a new oil pump gasket.
      GTY502490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

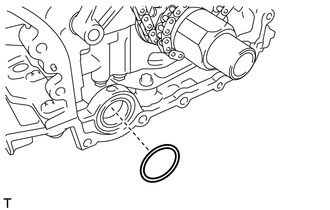

    4. Install a new O-ring.
      GTY502491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

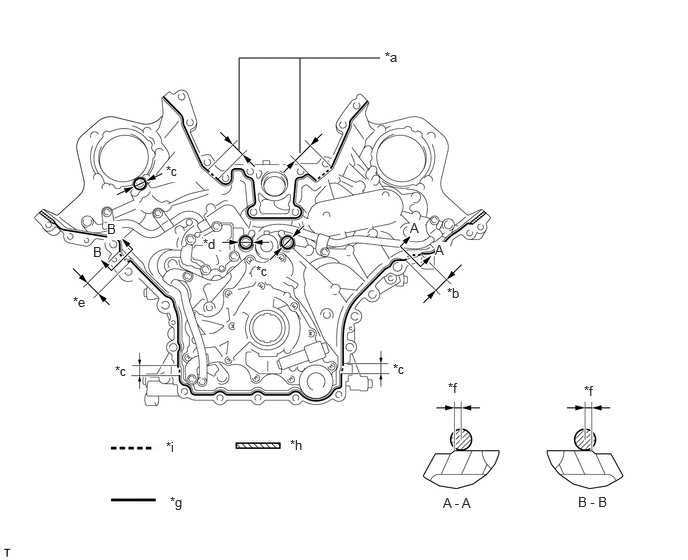

    5. Apply seal packing in a continuous line to the timing chain cover assembly as shown in the illustration.
      GTY499690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 20 mm (0.787 in.) *b 26 mm (1.02 in.)
      *c 16 mm (0.630 in.) *d 18 mm (0.709 in.)
      *e 23 mm (0.906 in.) *f 0.5 mm (0.0197 in.)
      *g Continuous Line Area *h Dashed Line Area
      *i Diagonal Line Area - -

      Seal Packing

      Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

      SEAL PACKING APPLICATION CHART

      Area Seal Packing Diameter Application Position from Inside Edge of Cover
      Continuous Line Area 2.5 to 3.5 mm (0.0984 to 0.138 in.) 2.5 mm (0.0984 in.)
      Dashed Line Area 6.4 mm (0.252 in.) or more 0.5 mm (0.0197 in.)
      Diagonal Line Area 2.5 to 3.5 mm (0.0984 to 0.138 in.) 5.5 mm (0.217 in.)
      NOTE:
      • If there is oil on the contact surfaces, wipe them with an oil-free cloth before applying seal packing.
      • Install the timing chain cover assembly within 3 minutes and tighten the bolts within 10 minutes of applying seal packing.
      • Do not add engine oil for at least 2 hours after installing the timing chain cover assembly.
      • Do not start the engine for at least 2 hours after installing the timing chain cover assembly.

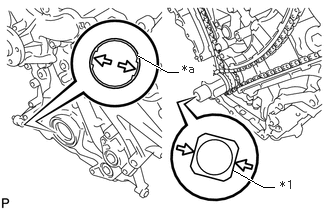

    6. Align the oil pump drive rotor spline and the crankshaft as shown in the illustration, and install the timing chain cover assembly.
      GTY497486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Crankshaft
      *a Oil Pump Drive Rotor Spline

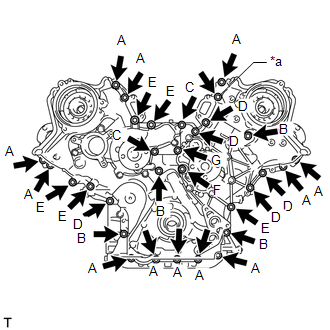

    7. Temporarily install the timing chain cover assembly with the 30 bolts and nut.
      BOLT LENGTH:

      Item Length Thread Diameter
      Bolt (A) 25 mm (0.984 in.) 8 mm (0.315 in.)
      Bolt (B) 55 mm (2.17 in.) 8 mm (0.315 in.)
      Bolt (C) 70 mm (2.76 in.) 8 mm (0.315 in.)
      Bolt (D) 35 mm (1.38 in.) 10 mm (0.394 in.)
      Bolt (E) 80 mm (3.15 in.) 10 mm (0.394 in.)
      Bolt (F) 80 mm (3.15 in.) 10 mm (0.394 in.)
      Bolt (G) 80 mm (3.15 in.) 8 mm (0.315 in.)
      GTY496990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Nut
      NOTE:

      Make sure that there is no oil on the bolt threads.

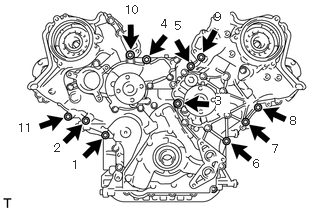

    8. Tighten the 11 bolts in several steps in the order shown in the illustration.

      Torque: 47 N.m (479 kgf/cm, 35 ft.lbf)

      Fig 1: Timing Chain Cover Assembly Bolts Tightening Sequence (1 Of 2)
      GTY513520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

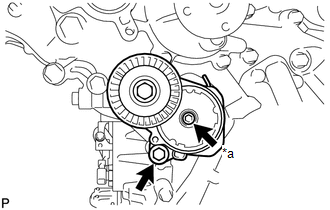

    9. Temporarily install the V-ribbed belt tensioner assembly with the bolt and hexagon bolt.
      GTY498058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hexagon Bolt

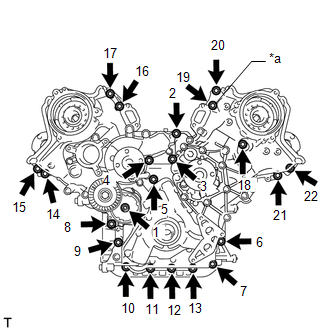

    10. Tighten the 21 bolts and nut in several steps in the order shown in the illustration.

      Torque: 23 N.m (235 kgf/cm, 17 ft.lbf)

      Fig 2: Timing Chain Cover Assembly Bolts Tightening Sequence (2 Of 2)
      GTY1082698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Nut

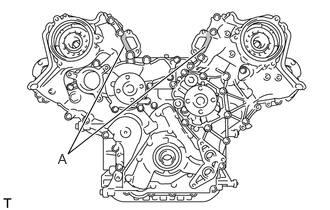

    11. If the seal packing has seeped out at the areas (A) shown in the illustration, wipe it off.
      GTY498798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL CAMSHAFT TIMING CONTROL MOTOR WITH EDU ASSEMBLY LH

    Refer to PROCEDURE - Step 7

  9. INSTALL CAMSHAFT TIMING CONTROL MOTOR WITH EDU ASSEMBLY RH

    Refer to PROCEDURE - Step 1

  10. INSTALL V-RIBBED BELT TENSIONER ASSEMBLY

    Refer to PROCEDURE - Step 54

  11. INSTALL SPARK PLUG TUBE GASKET

    Refer to PROCEDURE - Step 57

  12. INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 58

  13. INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 59

  14. INSTALL CRANKSHAFT TIMING GEAR KEY

    Refer to PROCEDURE - Step 27

  15. INSTALL CRANKSHAFT PULLEY

    Refer to PROCEDURE - Step 3

  16. INSTALL OIL FILTER BRACKET
    1. Install 2 new gaskets to the oil filter bracket.
    2. Install the oil filter bracket with the 2 bolts and 2 nuts.

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

    3. Install the oil filter bracket stay with the 2 bolts.

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  17. INSTALL FRONT WATER BY-PASS JOINT

    Refer to PROCEDURE - Step 67

  18. INSTALL NO. 3 V-BANK COVER BRACKET SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  19. INSTALL NO. 4 V-BANK COVER BRACKET SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  20. INSTALL IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2

  21. INSTALL NO. 2 WATER BY-PASS PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  22. INSTALL WATER INLET HOUSING

    Refer to PROCEDURE - Step 10

  23. INSTALL WATER PUMP PULLEY

    Refer to PROCEDURE - Step 2

  24. INSTALL OIL PUMP DRIVE SHAFT PULLEY

    Refer to PROCEDURE - Step 12

  25. INSTALL NO. 2 IDLER PULLEY SUB-ASSEMBLY

    Refer to PROCEDURE - Step 13

  26. INSTALL GENERATOR ASSEMBLY

    Refer to PROCEDURE - Step 1

  27. INSTALL COMPRESSOR ASSEMBLY WITH PULLEY

    Refer to INSTALLATION [09/2014 - 03/2019] , or refer to INSTALLATION [03/2019 - ]

  28. INSTALL FUEL PUMP WITH SEAL SUB-ASSEMBLY (for Bank 1)

    Refer to INSTALLATION [09/2014 - ]

  29. INSTALL FUEL PUMP WITH SEAL SUB-ASSEMBLY (for Bank 2)

    Refer to INSTALLATION [09/2014 - ]

  30. INSTALL NO. 3 ENGINE ROOM RELAY BLOCK ASSEMBLY

    Refer to PROCEDURE - Step 3

  31. INSTALL NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY

    Refer to PROCEDURE - Step 4

  32. INSTALL BATTERY TRAY

    Refer to PROCEDURE - Step 5

  33. INSTALL POWER STEERING ECU ASSEMBLY

    Refer to INSTALLATION [09/2014 - ]

  34. INSTALL FRONT SUSPENSION UPPER TO COWL BRACE LH

    Refer to PROCEDURE - Step 54 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 54 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 54 [03/2019 - ]

  35. INSTALL FRONT SUSPENSION UPPER TO COWL BRACE RH

    Refer to PROCEDURE - Step 53 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 53 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 53 [03/2019 - ]

  36. CONNECT NO. 2 OIL COOLER OUTLET HOSE

    Refer to PROCEDURE - Step 56 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 56 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 56 [03/2019 - ]

  37. CONNECT NO. 2 OIL COOLER INLET HOSE

    Refer to PROCEDURE - Step 57 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 57 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 57 [03/2019 - ]

  38. CONNECT NO. 2 RADIATOR HOSE

    Refer to PROCEDURE - Step 58 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 58 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 58 [03/2019 - ]

  39. CONNECT NO. 1 RADIATOR HOSE

    Refer to PROCEDURE - Step 59 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 59 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 59 [03/2019 - ]

  40. INSTALL RADIATOR RESERVE TANK ASSEMBLY

    Refer to PROCEDURE - Step 11 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 11 [11/2017 - ]

  41. INSTALL AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 61 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 61 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 61 [03/2019 - ]

  42. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 62 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 62 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 62 [03/2019 - ]

  43. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 2 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 2 [10/2015 - ]

  44. CONNECT VENTILATION HOSE

    Refer to PROCEDURE - Step 3 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 3 [10/2015 - ]

  45. INSTALL INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 15 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 15 [11/2017 - ]

  46. INSTALL RADIATOR ASSEMBLY

    Refer to INSTALLATION [09/2014 - 11/2017] , or refer to INSTALLATION [11/2017 - ]

  47. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    1. Connect the cable to negative (-) battery to the negative (-) battery terminal with the nut.

      Torque: 5.5 N.m (56 kgf/cm, 49 in.lbf)

      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

      Refer to INITIALIZATION [09/2014 - 08/2016] , or refer to INITIALIZATION [08/2016 - 11/2017] , or refer to INITIALIZATION [11/2017 - 03/2019] , or refer to INITIALIZATION [03/2019 - 01/2023] , or refer to INITIALIZATION [01/2023 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]

  48. ADD ENGINE OIL

    See step  5 [09/2014 - 10/2015], or see step  5 [10/2015 - 11/2021], or see step  5 [11/2021 - ]

  49. ADD ENGINE COOLANT

    Refer to PROCEDURE - Step 4

  50. ADD AUTOMATIC TRANSMISSION FLUID

    Refer to ADJUSTMENT [09/2014 - 03/2019] , or refer to ADJUSTMENT [03/2019 - ]

  51. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  52. INSPECT FOR ENGINE OIL LEAK

    See step  6 [09/2014 - 10/2015], or see step  6 [10/2015 - 11/2021], or see step  6 [11/2021 - ]

  53. INSPECT FOR FUEL LEAK

    Refer to ON-VEHICLE INSPECTION [09/2014 - ]

  54. INSPECT FOR REFRIGERANT LEAK

    Refer to PROCEDURE - Step 4 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 4 [03/2019 - ]

  55. INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 94 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 95 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 94 [03/2019 - ]

  56. INSTALL COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 2 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 2 [11/2017 - 03/2019] , or refer to PROCEDURE - Step 2 [03/2019 - 01/2023] , or refer to PROCEDURE - Step 2 [01/2023 - ]

  57. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 96 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 97 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 96 [03/2019 - ]
