Removal [01/2023 - ]: Procedure

  1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  2. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  3. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  4. REMOVE FRONT WIPER DEICER SWITCH

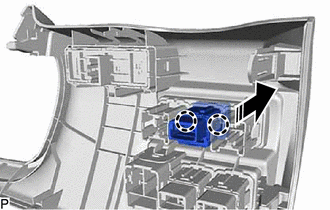

    1. Disengage the 2 claws to remove the front wiper deicer switch as shown in the illustration.
      GTY1137976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
