Removal [09/2014 - 03/2019]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [09/2014 - 11/2017] , or refer to PRECAUTION [11/2017 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [09/2014 - 08/2016] , or refer to INITIALIZATION [08/2016 - 11/2017] , or refer to INITIALIZATION [11/2017 - 03/2019]

  3. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 3

  4. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)

    Refer to PROCEDURE - Step 4

  5. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)

    Refer to PROCEDURE - Step 5

  6. REMOVE DOOR TRIM COVER

    Refer to PROCEDURE - Step 6

  7. REMOVE COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 1 [10/2015 - ]

  8. REMOVE FRONT DOOR NO. 1 STIFFENER CUSHION

    Refer to PROCEDURE - Step 8

  9. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  10. REMOVE OUTER MIRROR PROTECTOR

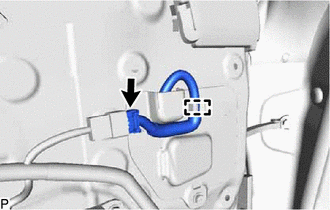

    1. Disconnect the connector.
      GTY509825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

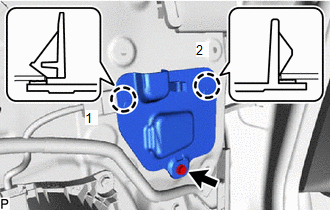

    2. Disengage the clamp.
    3. Remove the screw.
      GTY510223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 2 claws and remove the outer mirror protector.

      HINT:

      Disengage the claws in the order shown in the illustration.

  11. REMOVE OUTER MIRROR INSTALL HOLE COVER

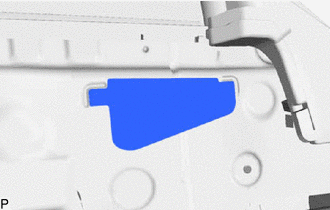

    1. Remove the outer mirror install hole cover.
      GTY520212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY

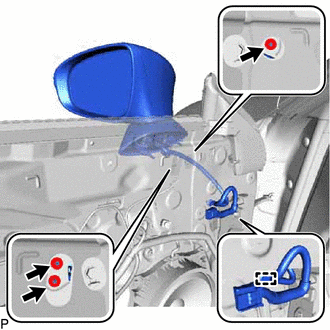

    1. Disengage the clamp.
      GTY509805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 nuts.

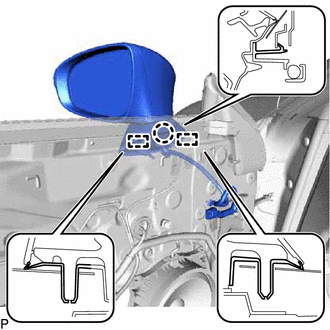

    3. Disengage the claw and 2 guides to remove the outer rear view mirror assembly.
      GTY509804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
