Inspection [03/2019 - ]: Procedure
- INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH
- Check the operation of the mirror surface.NOTE:
If the mirror surface is fully turned to the right, left, upward or downward position, the motor slips and produces a clicking noise. This is not a malfunction.
- Disconnect the outer rear view mirror assembly RH connector.

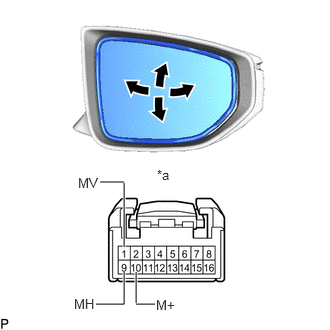

*a Component without harness connected
(Outer Rear View Mirror Assembly RH) - Apply battery voltage and check the operation of the mirror surface.
OK
Battery Connection Specified Condition Battery positive (+) → Terminal 1 (MV)
Battery negative (-) → Terminal 10 (M+)Turns upward Battery positive (+) → Terminal 10 (M+)
Battery negative (-) → Terminal 1 (MV)Turns downward Battery positive (+) → Terminal 9 (MH)
Battery negative (-) → Terminal 10 (M+)Turns left Battery positive (+) → Terminal 10 (M+)
Battery negative (-) → Terminal 9 (MH)Turns right If the result is not as specified, replace the outer rear view mirror assembly RH.
- Disconnect the outer rear view mirror assembly RH connector.
- Check the operation of the mirror heater.
- Disconnect the outer rear view mirror assembly RH connector.

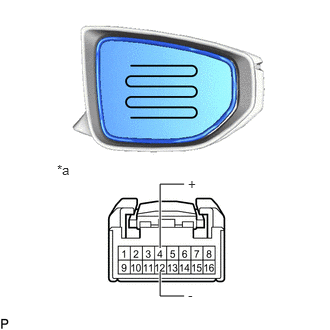

*a Component without harness connected
(Outer Rear View Mirror Assembly RH) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 4 (+) - 12 (-) 25°C (77°F) 3.8 to 5.2 Ω If the result is not as specified, replace the outer rear view mirror assembly RH.
- Connect a cable from the positive (+) battery terminal to terminal 4 and the negative (-) battery terminal to terminal 12, then check that the mirror becomes warm.
HINT:
It takes a short time for the mirror to become warm.
OK
Mirror becomes warm.
If the result is not as specified, replace the outer rear view mirror assembly RH.
- Disconnect the outer rear view mirror assembly RH connector.
- Check the operation of the mirror surface.
- INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH
- Check the operation of the mirror surface.NOTE:
If the mirror surface is fully turned to the right, left, upward or downward position, the motor slips and produces a clicking noise. This is not a malfunction.
- Disconnect the outer rear view mirror assembly LH connector.

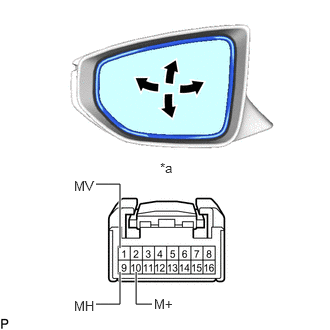

*a Component without harness connected
(Outer Rear View Mirror Assembly LH) - Apply battery voltage and check the operation of the mirror surface.
OK
Battery Connection Specified Condition Battery positive (+) → Terminal 1 (MV)
Battery negative (-) → Terminal 10 (M+)Turns upward Battery positive (+) → Terminal 10 (M+)
Battery negative (-) → Terminal 1 (MV)Turns downward Battery positive (+) → Terminal 9 (MH)
Battery negative (-) → Terminal 10 (M+)Turns right Battery positive (+) → Terminal 10 (M+)
Battery negative (-) → Terminal 9 (MH)Turns left If the result is not as specified, replace the outer rear view mirror assembly LH.
- Disconnect the outer rear view mirror assembly LH connector.
- Check the operation of the mirror heater.
- Disconnect the outer rear view mirror assembly LH connector.

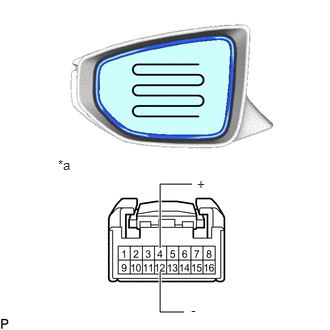

*a Component without harness connected
(Outer Rear View Mirror Assembly LH) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 4 (+) - 12 (-) 25°C (77°F) 3.8 to 5.2 Ω If the result is not as specified, replace the outer rear view mirror assembly LH.
- Connect a cable from the positive (+) battery terminal to terminal 4 and the negative (-) battery terminal to terminal 12, then check that the mirror becomes warm.
HINT:
It takes a short time for the mirror to become warm.
OK
Mirror becomes warm.
If the result is not as specified, replace the outer rear view mirror assembly LH.
- Disconnect the outer rear view mirror assembly LH connector.
- Check the operation of the mirror surface.
