Components [03/2019 - ]

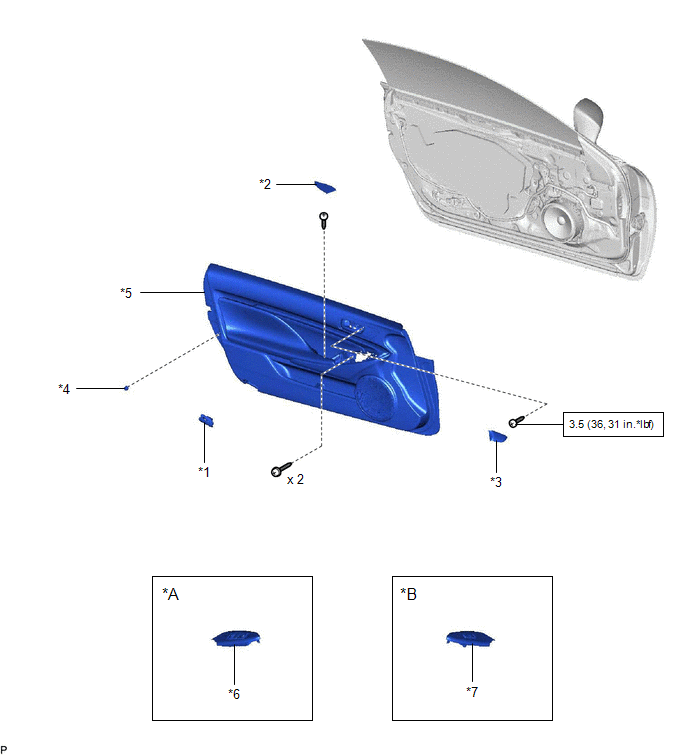

Fig 1: Outer Rear View Mirror Replacement Components With Torque Specifications [03/2019 - ] (1 Of 3)
| *A | for Driver Side | *B | for Front Passenger Side |
| *1 | COURTESY LIGHT ASSEMBLY | *2 | DOOR TRIM COVER |
| *3 | FRONT DOOR INSIDE HANDLE BEZEL PLUG | *4 | FRONT DOOR NO. 1 STIFFENER CUSHION |
| *5 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY | *6 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL |
| *7 | POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

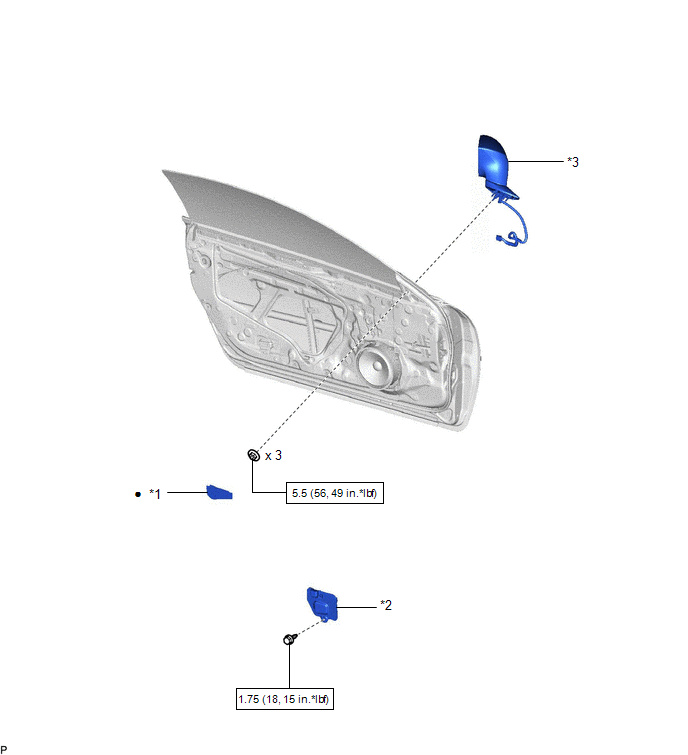

Fig 2: Outer Rear View Mirror Replacement Components With Torque Specifications [03/2019 - ] (2 Of 3)
| *1 | OUTER MIRROR INSTALL HOLE COVER | *2 | OUTER MIRROR PROTECTOR |
| *3 | OUTER REAR VIEW MIRROR ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

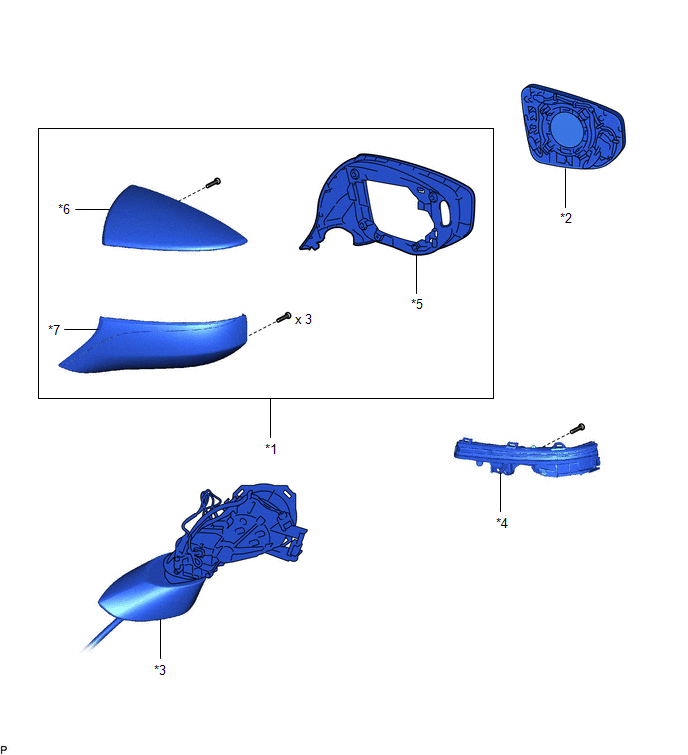

| *1 | NO. 2 OUTER MIRROR COVER | *2 | OUTER MIRROR |
| *3 | OUTER MIRROR ACTUATOR ASSEMBLY | *4 | SIDE TURN SIGNAL LIGHT ASSEMBLY |
| *5 | VISOR ASSEMBLY | *6 | VISOR COVER A |
| *7 | VISOR COVER B | - | - |
